30-3857-66-05 02 – BACKGUARD – Aparts

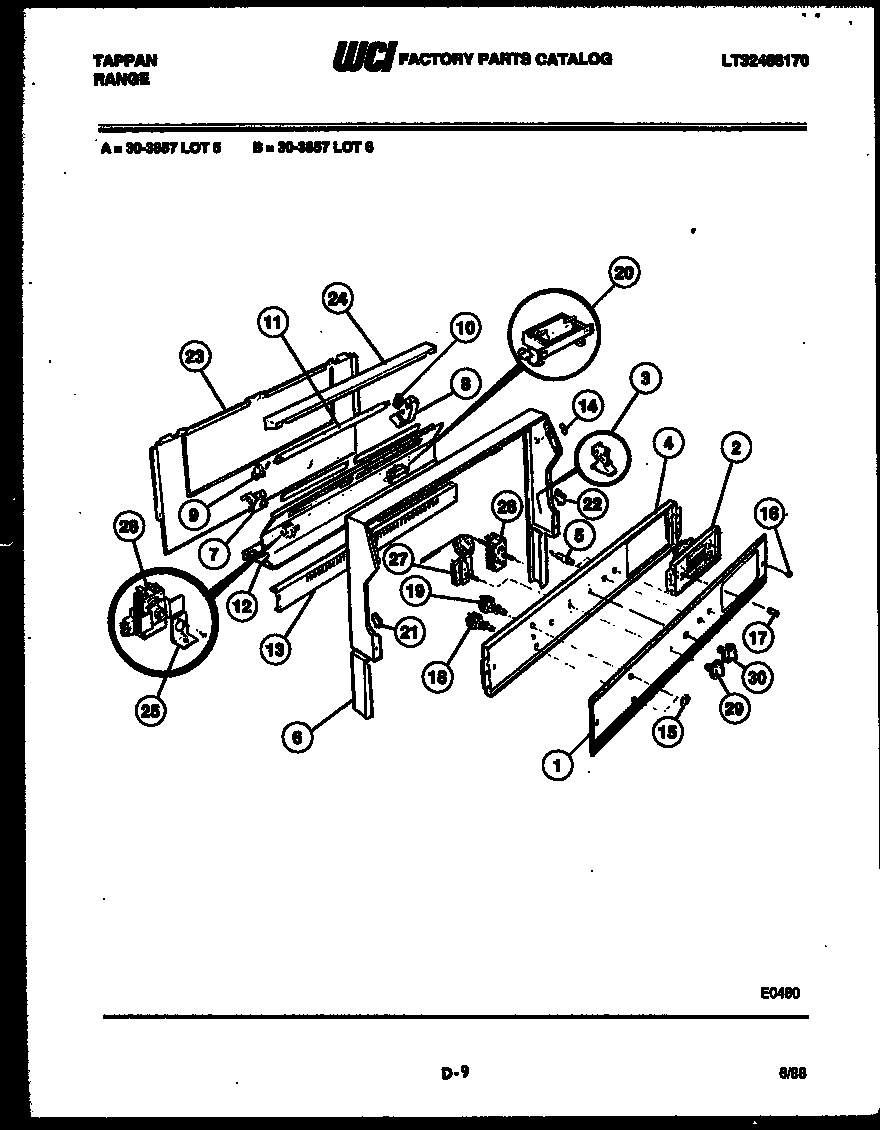

30-3857-66-05 02 – BACKGUARD

Products

Position	Product
*13431	ANGLE LIGHT SWITCH
1	SCREW OVEN BOTTOM
2	CLOCK
3	SUPPORT-BACKGUARD (2)
4	PLATE INSTRUMENT MOUNTING
5	INDICATOR LIGHT (4)
6	WCI 3131436
7	BRKT-FLUOR LT MTG LH
8	BRKT-FLUOR LT MTG RH
9	RECEPTACLE-FLU LT LH
10	RECEPTACLE-FLU LT RH
11	BULB-FLUOR
12	PANEL SPLASHER
13	WCI 3131241
14	FASTENER, GLASS (2)
15	WCI 045T071P01
16	NUT - DECOR (2)
17	WCI 358T206P01
18	SW.-FLUOR. LT.
19	GLASS-WORK LITE (2)
20	WCI 3051115
21	WCI 123T120P03
22	WCI 123T120P04
23	SHIELD-BACKGUARD,REAR WALL
24	SHIELD-FLUOR LT.
25	ANGLE-S/C THERM. MTG
26	WCI 722T071P01
27	THERMOSTAT BAKE
28	SWITCH SLCTR-5 POS
29	KNOB-SEL. SW.
30	WCI 3131725
