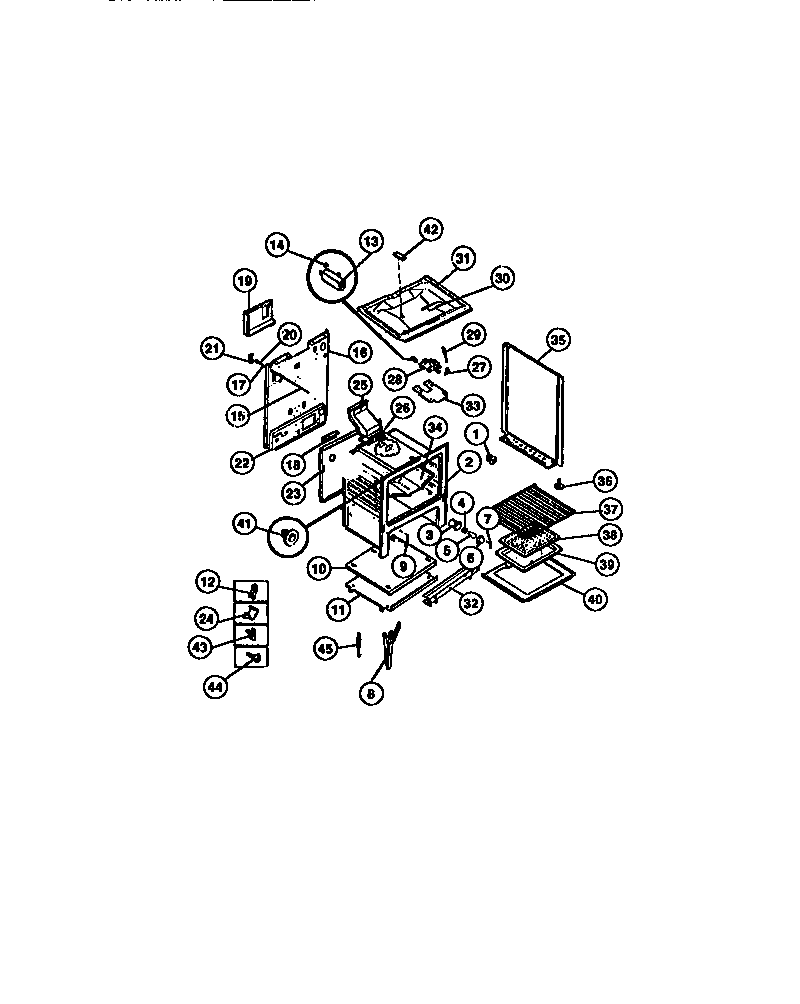

30-3858-00-02 06 – BASIC BODY

Products

Position	Product
*26441	5304534000 Frigidaire Cord
*26457	SPACER-BAFFLE (2) (NON-ILLUSTRATED)
*26449	INSULATION, OVEN TOP
*26451	WCI 3131305
*26445	3131903 Frigidaire Door/Drawer Bumper
*26453	SHIELD-LATCH
*26446	FSTNR-POWER CORD (NON-ILLUSTRATED)
*26447	INSUL OVEN BACK (NON-ILLUSTRATED)
*26448	08067973 Frigidaire 0 Insulation
*26450	WCI 655T434F01
*26443	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
*26442	SHIELD-LATCH (NON-ILLUSTRATED)
*26454	INSULATION, OVEN WRAPPER
*26444	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1	WCI 665T188P02
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WCI 3131104
7	WCI 3131298
8	CHANL-DR HNG (2)
9	WCI 3131570
10	WCI 3131312
11	WCI 3131313
12	CLIP-TUBING (2)
13	SWITCH-LATCH
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
14	WCI 241T001P01
15	WCI 174T329P01
16	WCI 3131567
17	ROD-LIGHT SWITCH
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 3131590
23	WCI 3131316
24	CLIP, WIRE
25	WCI 3131931
26	316542102 Frigidaire Flue Gasket
27	WCI 358T158S02
27A	WASHER-BLACK
27B	WCI 655T437F01
28	WCI 368T027P01
29A	FASTENER-EDGE MTG (NOT ILLUSTRATED)
29	WCI 3131357
30	WCI 3131101
31	WCI 095T030F02-86
32	SHIELD-FRONT
33	SHIELD-OVN TOP
34	WCI 3200836
35A	B/S-LH-(WHITE)
35	B/S-RH-(WHITE)
36	WCI 636M004P01
37	316067902 Frigidaire Oven Rack
38	WCI 3131356
39	PAN, BROILER
40A	316064600 Frigidaire Oven Support
40	WCI 058T036F03-86
41	BUTTON-REMOTE SW
42	COVER, BURNER BOX
43	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
44	316282700 Frigidaire Oven Screw
