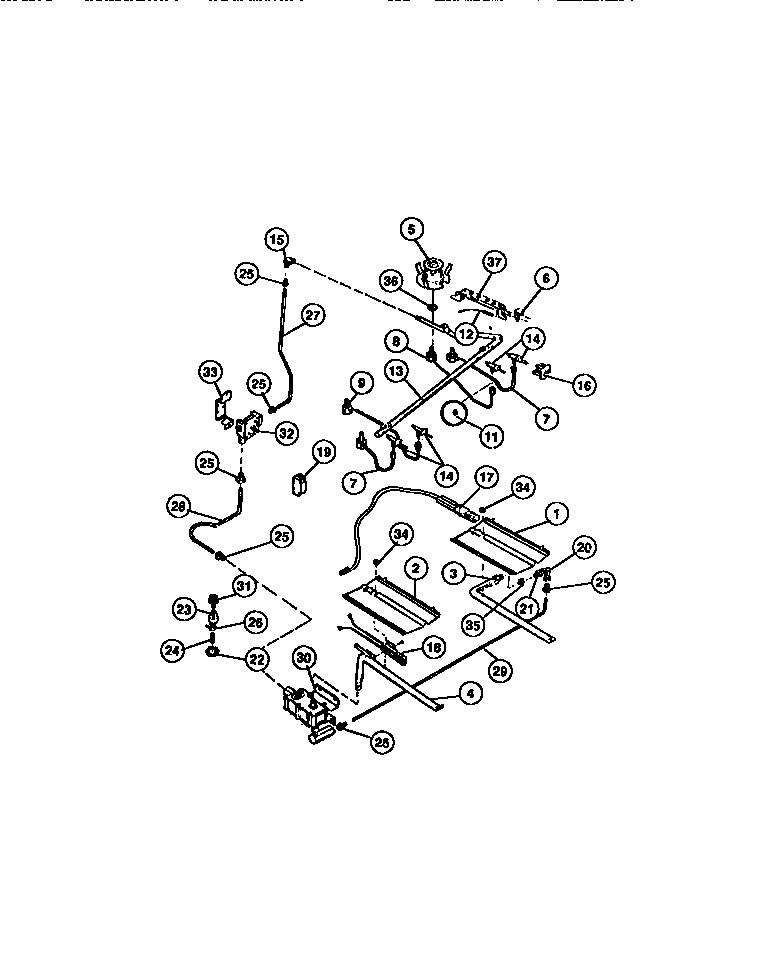

30-3858-23-04 05 – BURNERS, MANIFOLD, GAS CONTROL

Products

PositionProduct
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6RETAINER IGNITER
7BURNER TUBE-RF & LF
8WCI 079T033H02
9WCI 079T033H03
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13MANIFOLD, PIPE
14WCI 3131126
15ELBOW 1/2 NP TO 9/16-24
15ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T008P02
21NUT
22NUT FUSE
23WCI 647T067P01
24FUSE, BUSS
25FITTING-LOXIT (8)
26RECEPTICLE FUSE
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
30A5300809968 Frigidaire Dishwasher P-1 Washer
305303208499 Frigidaire Safety Gas Valve
31CAP FUSE
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36NUT SPECIAL
37AWCI 3051420
37WCI 072T839F02
