30-3858-66-01 06 – BODY PARTS

30-3858-66-01 06 – BODY PARTS

Written by

in

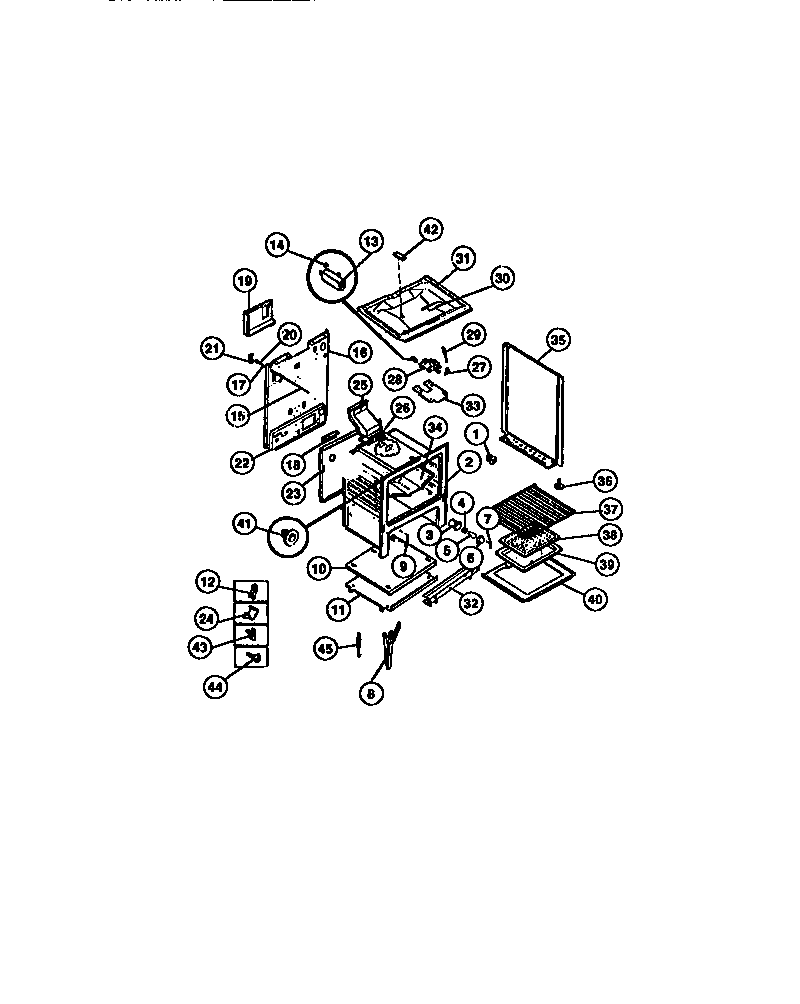

30-3858-66-01 06 – BODY PARTS

Products

PositionProduct
*11615ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8CHANL-DR HNG (2)
9WCI 3131570
10WCI 3131312
11WCI 3131313
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15A5304534000 Frigidaire Cord
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131590
23WCI 3131316
24CLIP, WIRE
25WCI 3131931
26BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
26ASHIELD-LATCH (NON-ILLUSTRATED)
26316542102 Frigidaire Flue Gasket
27BWCI 655T437F01
27WCI 358T158S02
27AWASHER-BLACK
28WCI 368T027P01
29WCI 3131357
30WCI 3131101
31WCI 095T030F02-86
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3131315
35PNL. B/S (LH WEAT)
35PNL. B/S (RH WEAT)
36WCI 636M004P01
37316067902 Frigidaire Oven Rack
38WCI 3131356
39PAN, BROILER
40WCI 058T036F03-86
40A316064600 Frigidaire Oven Support
40B3131903 Frigidaire Door/Drawer Bumper
41BINSUL OVEN BACK (NON-ILLUSTRATED)
41HSHIELD-LATCH
41BUTTON-REMOTE SW
41AFSTNR-POWER CORD (NON-ILLUSTRATED)
41C08067973 Frigidaire 0 Insulation
41DINSULATION, OVEN TOP
41FWCI 3131305
41EWCI 655T434F01
42COVER, BURNER BOX
433051162 Frigidaire Oven Range Front Broiler Drawer Glide
44316282700 Frigidaire Oven Screw
