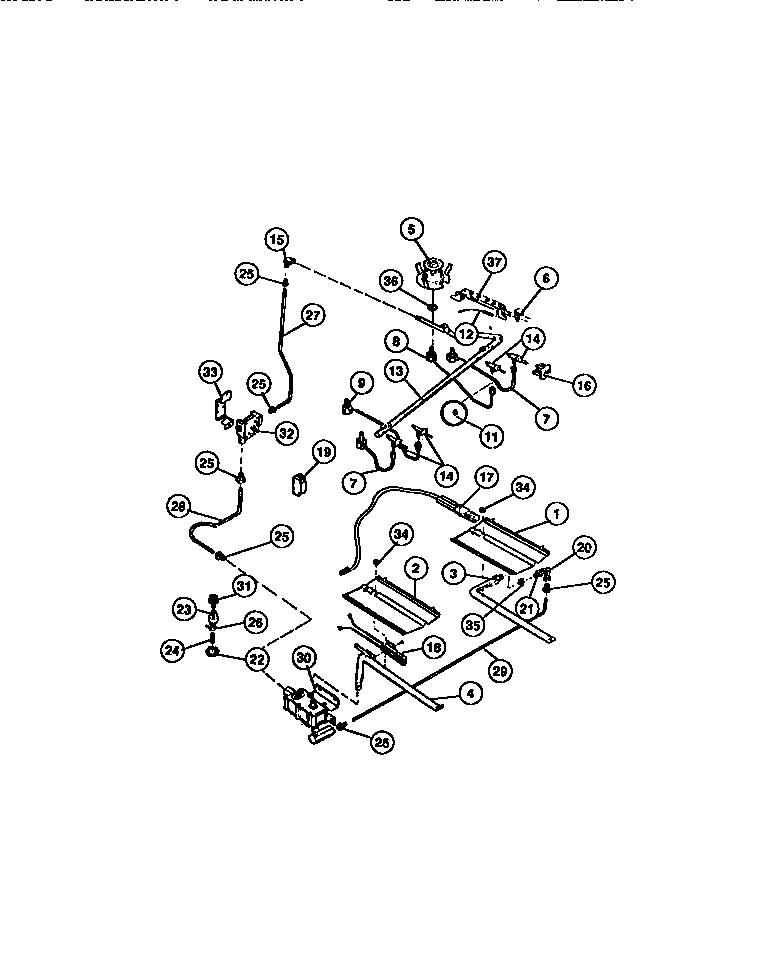

30-3858-66-02 05 – BURNERS, MANIFOLD, GAS CONTROL

Products

Position	Product
1	WCI 3131283
2	BAFFLE-OVN BURNER
3	WCI 079T028P01
4	WCI 3131290
5	WCI 079T032S02
6	RETAINER IGNITER
7	BURNER TUBE-RF & LF
8	WCI 079T033H02
9	WCI 079T033H03
11	WCI 247T074P01
12	IGNITER-TOP BURNR (4)
13	MANIFOLD, PIPE
14	WCI 3017846
15	ELBOW 1/2 NP TO 9/16-24
15A	NUT COMPRESSN (4)
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5304505695 Frigidaire Oven Module
20	WCI 455T008P02
21	NUT
22	NUT FUSE
23	WCI 647T067P01
24	FUSE, BUSS
25	FITTING-LOXIT (8)
26	RECEPTICLE FUSE
27	TUBE-REGUL TEE
28	TUBE-VALVE TO REGUL
29	TUBE-VALVE TO MIXER ELBOW
30A	5300809968 Frigidaire Dishwasher P-1 Washer
30	5303208499 Frigidaire Safety Gas Valve
31	CAP FUSE
32	5303935125 Frigidaire Pressure Regulator
33	316091600 Frigidaire Oven Bracket
34	5303013272 Frigidaire Oven Nut
35	SPUD NO 50
36	NUT SPECIAL
37A	WCI 3051420
37	WCI 072T839F02
