30-3858-66-04 06 – BASIC BODY

30-3858-66-04 06 – BASIC BODY

Written by

in

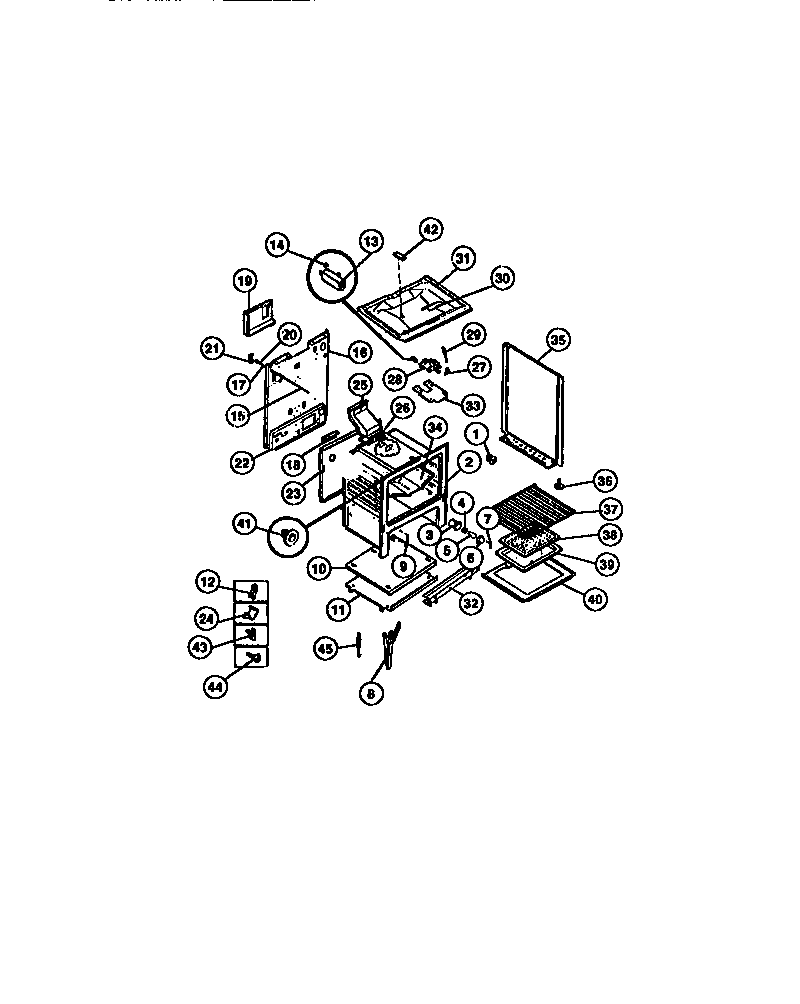

30-3858-66-04 06 – BASIC BODY

Products

PositionProduct
*26457SPACER-BAFFLE (2) (NON-ILLUSTRATED)
*26449INSULATION, OVEN TOP
*26451WCI 3131305
*264453131903 Frigidaire Door/Drawer Bumper
*26453SHIELD-LATCH
*26446FSTNR-POWER CORD (NON-ILLUSTRATED)
*26447INSUL OVEN BACK (NON-ILLUSTRATED)
*26454INSULATION, OVEN WRAPPER
*2644808067973 Frigidaire 0 Insulation
*26450WCI 655T434F01
*26443SCREW-SET KNOB MTG (NON-ILLUSTRATED)
*26442SHIELD-LATCH (NON-ILLUSTRATED)
*26444SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*264415304534000 Frigidaire Cord
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8CHANL-DR HNG (2)
9WCI 3131570
10WCI 3131312
11WCI 3131313
12CLIP-TUBING (2)
13SWITCH-LATCH
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
14WCI 241T001P01
15WCI 174T329P01
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131590
23WCI 3131316
24CLIP, WIRE
25WCI 3131931
26316542102 Frigidaire Flue Gasket
27BWCI 655T437F01
27WCI 358T158S02
27AWASHER-BLACK
28WCI 368T027P01
29AFASTENER-EDGE MTG (NOT ILLUSTRATED)
29WCI 3131357
30WCI 3131101
31WCI 095T030F02-86
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3200836
35PNL B/S-LH (WHEAT)
35APNL B/S-RH (WHEAT)
36WCI 636M004P01
37316067902 Frigidaire Oven Rack
38WCI 3131356
39PAN, BROILER
40WCI 058T036F03-86
40A316064600 Frigidaire Oven Support
41BUTTON-REMOTE SW
42COVER, BURNER BOX
433051162 Frigidaire Oven Range Front Broiler Drawer Glide
44316282700 Frigidaire Oven Screw
