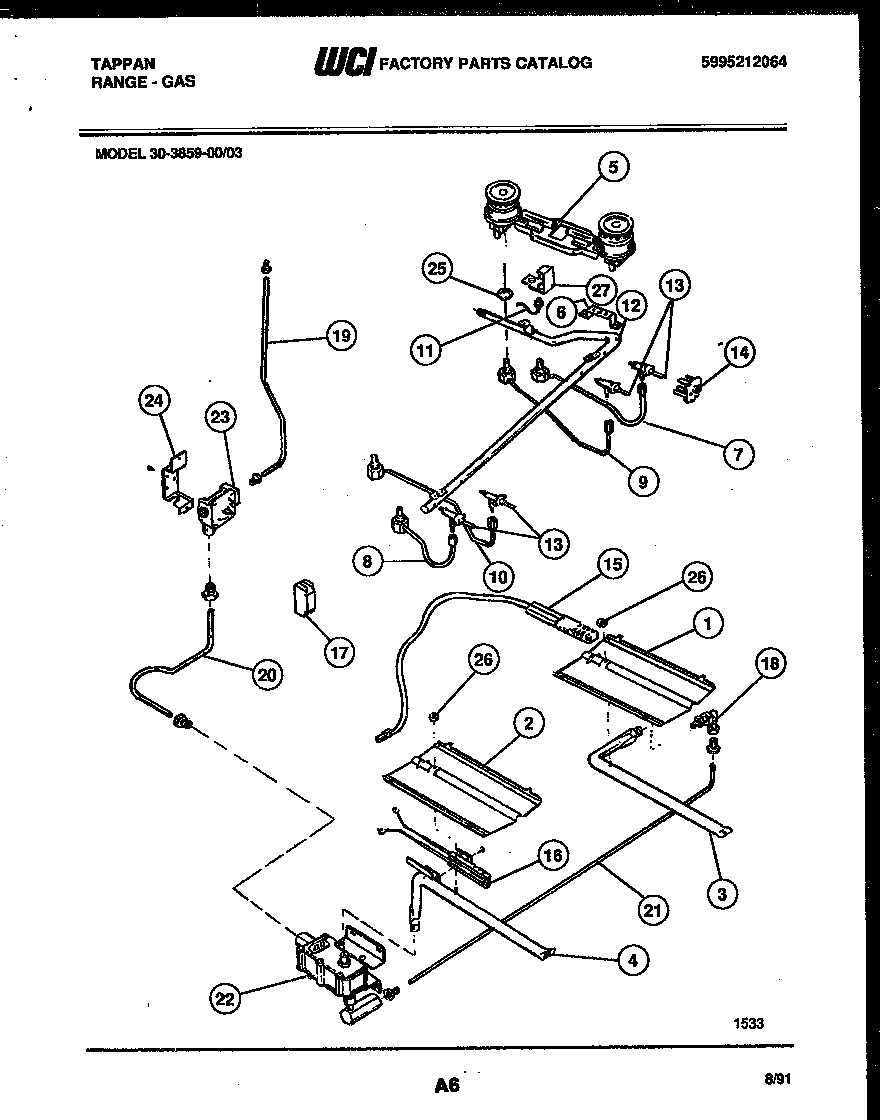

30-3859-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER-TOP-DOUBLE
6BRACKET BURNER MTG
7TUBE-BURNER, RF
8TUBE-BURNER, LF
9TUBE-BURNER, RR
10TUBE-BURNER, LR
11IGNITER-TOP BURNER, BASE, (2)
12WCI 5303271375
13VALVE TOP-3 POS
14316035200 Frigidaire Ignition Switch
155303935068 Frigidaire Flat Igniter
165303935066 Frigidaire Oven Flat Igniter 17" Leads
175303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18WCI 5303208640
19TUBE-ALUM 3/8 REG/MANIFOLD PIPE
20TUBE-VALVE TO REGUL
21TUBE-VALVE TO MIXER ELBOW
225303208499 Frigidaire Safety Gas Valve
235303935125 Frigidaire Pressure Regulator
24316091600 Frigidaire Oven Bracket
25NUT, SPECIAL
265303013272 Frigidaire Oven Nut
273016993 Frigidaire Oven Retainer
