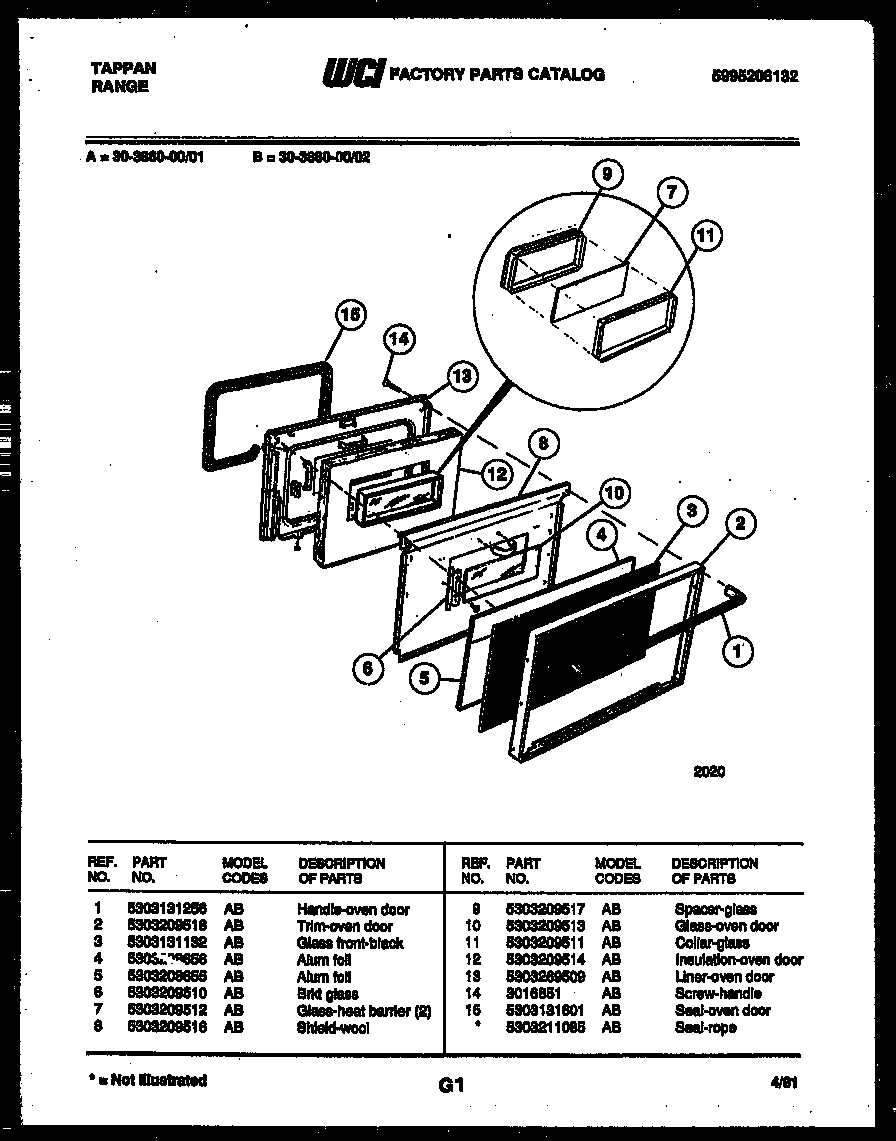

30-3860-00-01 05 – DOOR PARTS

30-3860-00-01 05 – DOOR PARTS

Written by

in

30-3860-00-01 05 – DOOR PARTS

Products

PositionProduct
*42466SEAL-ROPE, 0.25 DIA
1HANDLE
2WCI 5303209518
3GLASS FRNT
4REFLECTOR, ALUMINUM FOIL
55303208655 Frigidaire Reflector Assembly
6BRACKET-GLASS MTG
7GLASS-OVEN DOOR, HEAT BARRIER, (2)
8WCI 5303209516
9WCI 5303209517
10GLASS-OVEN DOOR, INNER
11WCI 5303209511
12INSULATION-OVEN DOOR
13WCI 5303269509
14WCI 3016851
155303131601 Frigidaire Oven Seal
