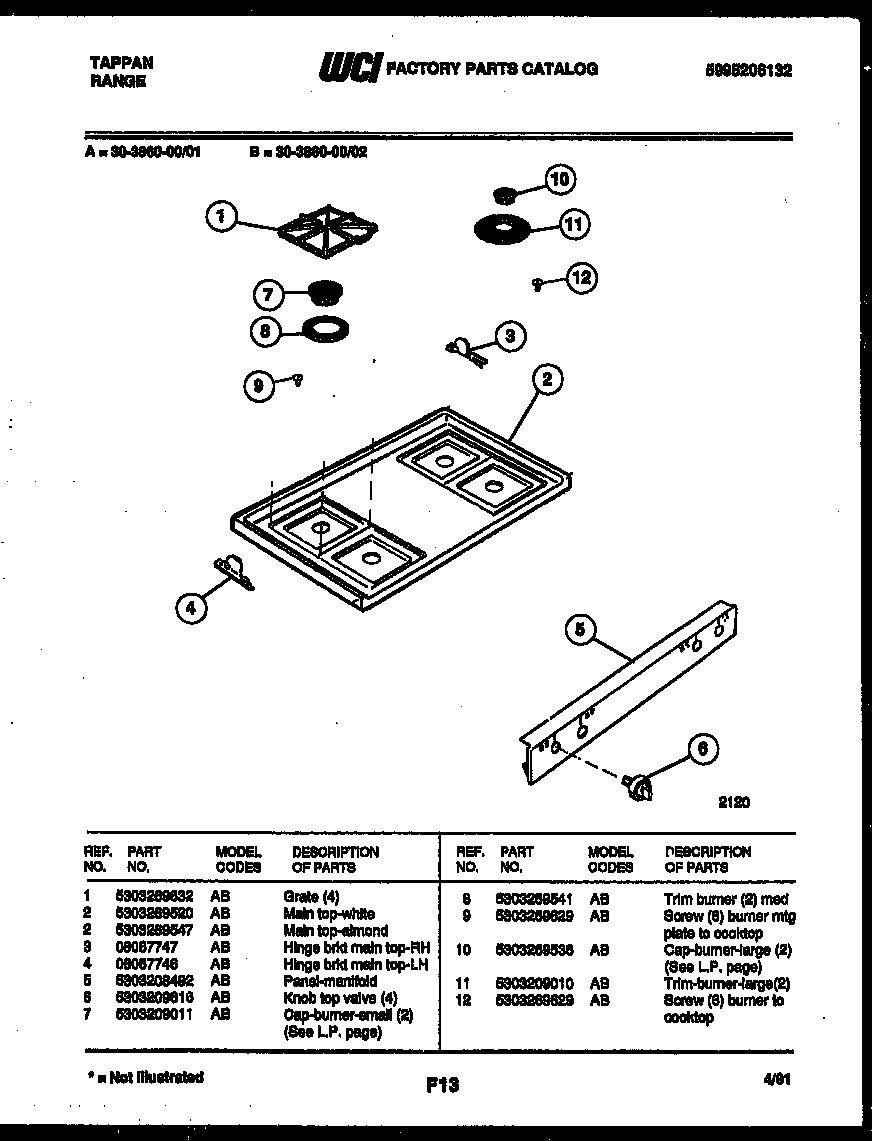

30-3860-23-02 03 – COOKTOP PARTS

Products

PositionProduct
1WCI 5303269632
2WCI 5303269547
3BRACKET-HINGE,MAIN TOP RH
4BRACKET-HINGE,MAIN TOP LH
5WCI 5303208492
6KNOB-TOP VALVE, (4)
7CAP-BURNER-2 SMALL (SEE L.P. PAGE)
8TRIM BURNER BLACK MED (2)
10CAP-BURNER-LGE (2) (SEE L.P. PAGE)
11TRIM BURNER BLACK LARGE (2)
12SCREW (6) BURNER TO COOKTOP
