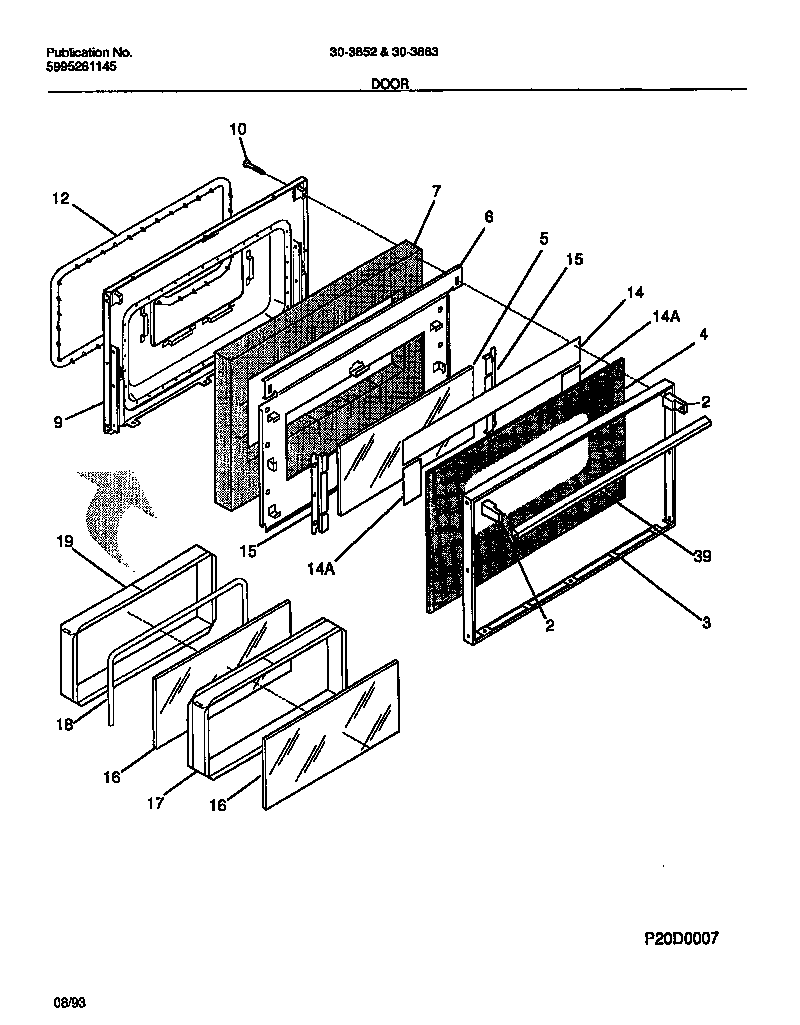

30-3863-00-02 08 – DOOR

Products

Position	Product
*83254	RIVET-POP, WARING-PLATE
*83253	WCI 316065300
*83257	SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*83258	WCI 5303269859
*83255	5303285179 Frigidaire Oven Door Screw
*83256	WCI 5303280311
2	316137003 Frigidaire Range / Cooktop End Cap
3	WCI 5303209518
3	WCI 316067802
4	GLASS-OVEN DOOR, BLACK, OUTER
5	GLASS-OVEN DOOR, INNER
6	SHIELD-INSULATION
7	INSULATION-OVEN DOOR
9	WCI 3156066603
10	SCREW-HANDLE MTG, WAFER HEAD, 10-24(F) X 3
12	5303131601 Frigidaire Oven Seal
14A	5303208655 Frigidaire Reflector Assembly
14	REFLECTOR, ALUMINUM FOIL
15	BRACKET-GLASS MTG
16	GLASS-OVEN DOOR, HEAT BARRIER, (2)
17	WCI 5303209517
18	SEAL-ROPE, 0.25 DIA
19	WCI 316067600
39	HANDLE-DOOR, OVEN
