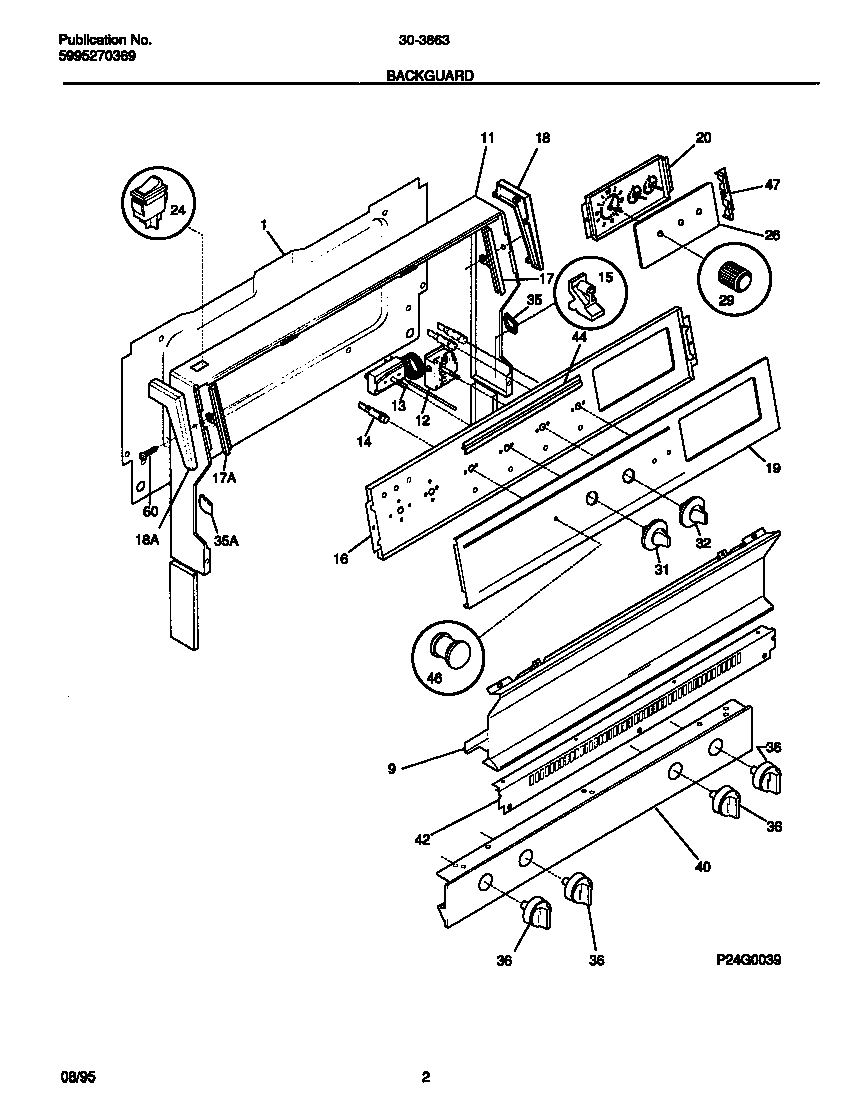

30-3863-00-04 02 – BACKGUARD

Products

Position	Product
*65562	WCI 5303281584
*65560	WCI 3204745
*65561	WCI 5303272555
*65564	WCI 316001439
*65563	SCREW-END CAP
1	SHIELD-BACKGUARD,REAR WALL
9	WCI 316043501
11	WCI 3204764
12	THERMOSTAT-BAKE
13	SWITCH SELECTOR 5 POS
14	WCI 5308037896
14A	INDICATOR LIGHT-LOCK (1)
15	SUPPORT-BACKGUARD,(2)
16	WCI 316042601
17	TRIM-GLASS RETAINER,RH
17A	TRIM-GLASS RETAINER,LH
18	WCI 3204747
18A	WCI 3204746
19	PANEL, CONTROL, METAL
20	ELECTRICAL CLOCK
24	5308015487 Frigidaire Switch-Oven Light
26	WCI 3201695
29	WCI 316029000
31	WCI 5303286099
32	WCI 5303286098
35	CAP-RH
35A	CAP-LH
36	WCI 316023014
40	WCI 316009242
42	WCI 316084300
44	WCI 3131468
46	WCI 316065800
47	RETAINER, CLOCK GLASS, (2)
60	316021105 Frigidaire Oven Screw
