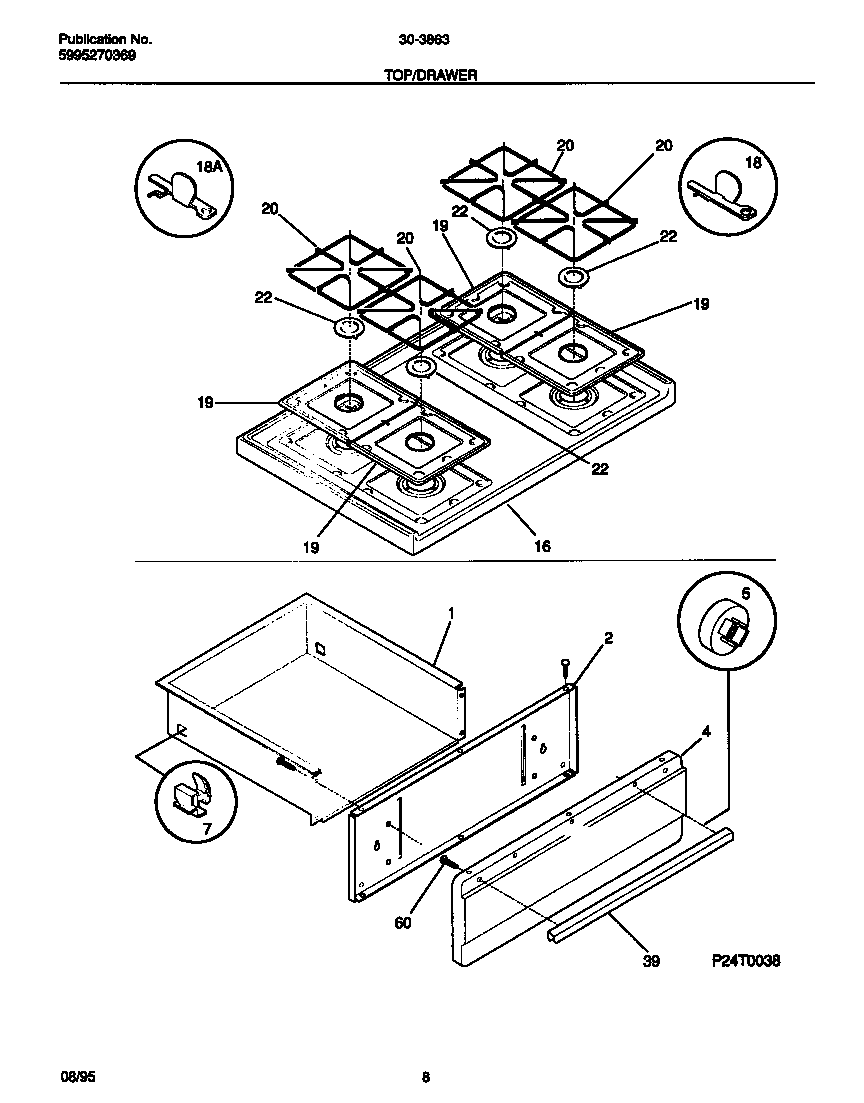

30-3863-00-04 05 – TOP/DRAWERadmin2025-04-26T08:44:59+00:0030-3863-00-04 05 – TOP/DRAWER
Products
| Position | Product |
|---|
| *65569 | 3131903 Frigidaire Door/Drawer Bumper |
| *65572 | 131243700 Frigidaire Screw |
| *65571 | WCI 5303281584 |
| *65570 | RIVET-POP, WARING-PLATE |
| 1 | DRAWER-UTILITY |
| 2 | SHIELD-PNL |
| 4A | SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED) |
| 4 | PANEL-BROILER, WHITE |
| 5 | FSTNR, SPACER (2) |
| 7 | 3051163 Frigidaire Oven Range Rear Broiler Drawer Glide |
| 16 | WCI 316010408 |
| 16B | GUSSET-MTG (LH) (NON-ILLUSTRATED) |
| 16A | GUSSET-MTG (RH) (NON-ILLUSTRATED) |
| 18A | BRACKET-HINGE,MAIN TOP LH |
| 18 | BRACKET-HINGE,MAIN TOP RH |
| 19 | WCI 316011401 |
| 20 | WCI 5303269632 |
| 22 | 316010901 Frigidaire Burner Cap P1 |
| 39 | HANDLE-DRAWER, BRUSHED CHROME |
| 60 | SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2 |
