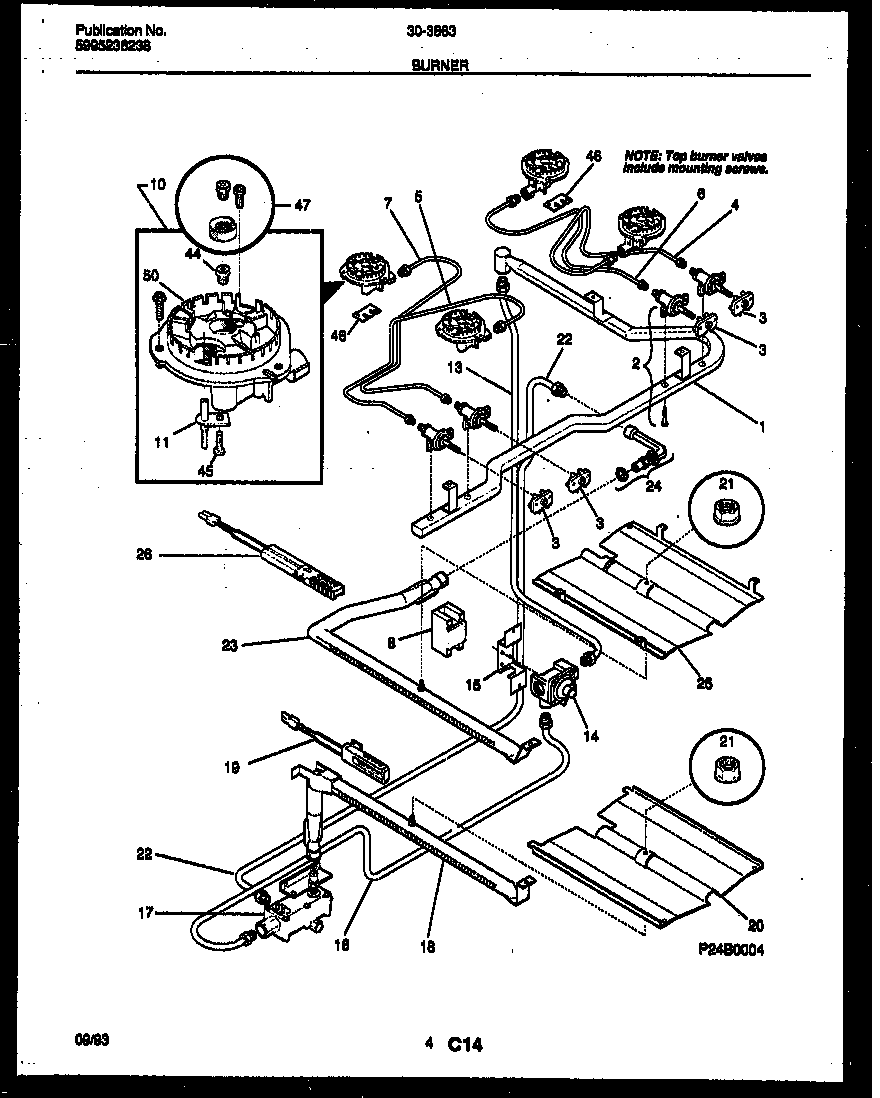

30-3863-23-01 03 – BURNER PARTS

30-3863-23-01 03 – BURNER PARTS

Written by

in

30-3863-23-01 03 – BURNER PARTS

Products

PositionProduct
1WCI 5303271375
2WCI 316020400
3SWITCH-IGNITER, (4)
4WCI 316059600
5316059613 Frigidaire Oven Tube-LF
6WCI 316059602
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10WCI 316010600
11316011200 Frigidaire Oven Top Burner Igniter
13TUBE-ALUM 3/8 REG/MANIFOLD PIPE
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16TUBE-VALVE TO REGUL
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22TUBE-VALVE TO MIXER ELBOW
23WCI 08067935
24WCI 5303208640
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 5303269491
47WCI 5303286386
50WCI 316010700
