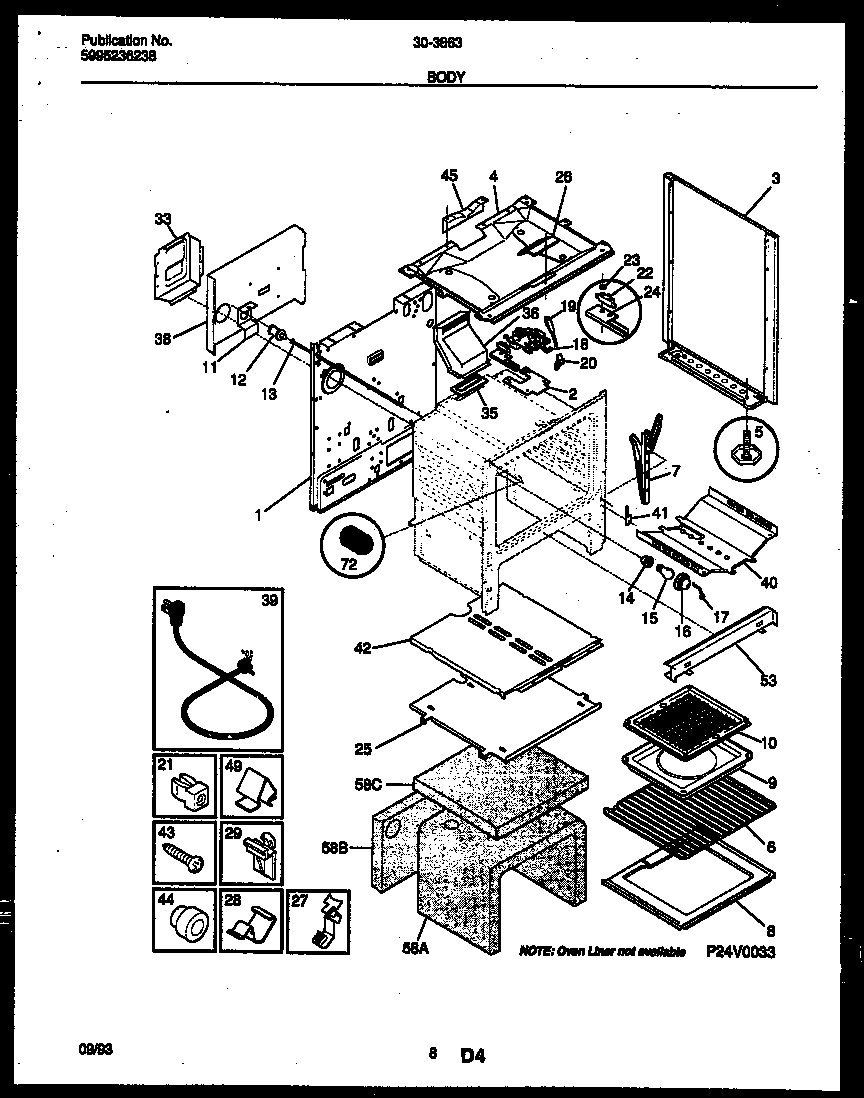

30-3863-23-01 05 – BODY PARTS

30-3863-23-01 05 – BODY PARTS

Written by

in

30-3863-23-01 05 – BODY PARTS

Products

PositionProduct
*90876FASTENER-EDGE MTG (NOT ILLUSTRATED)
*90876WCI 08067961
*90876SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53SHIELD-FRONT
53A08067973 Frigidaire 0 Insulation
58BINSULATION OVEN BACK (NON-ILLUSTRATED)
58AINSULATION, OVEN WRAPPER
58CINSULATION, OVEN TOP
72COVER-LIGHT/SWITCH ROD
