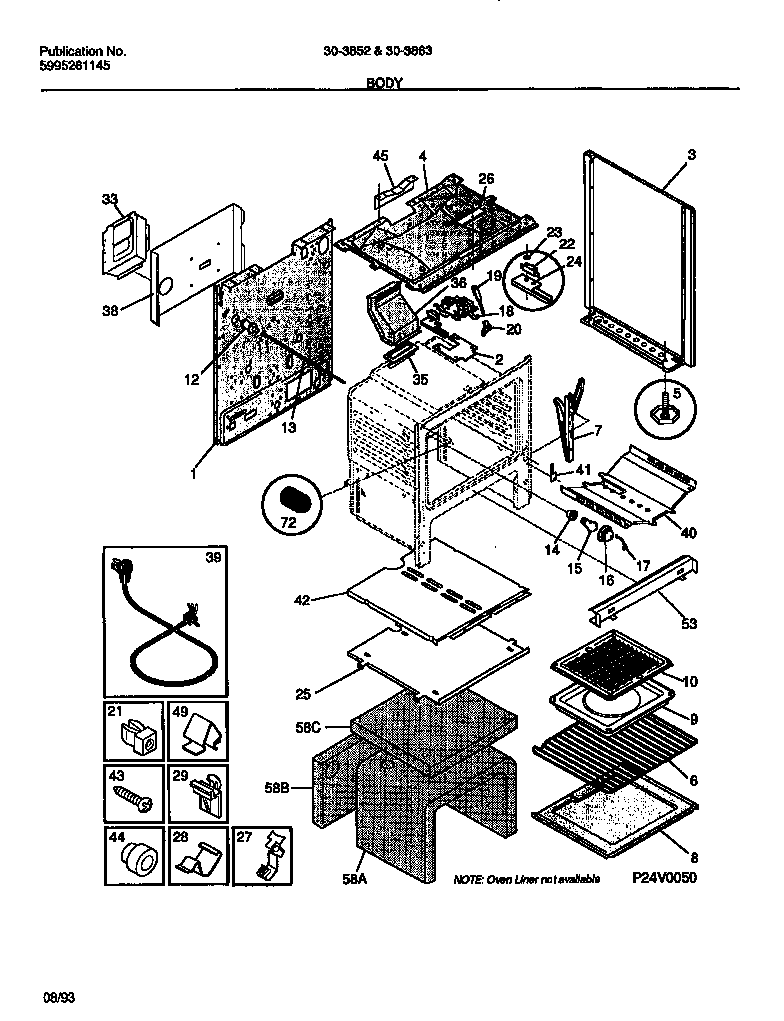

30-3863-23-02 04 – BODY

30-3863-23-02 04 – BODY

Written by

in

30-3863-23-02 04 – BODY

Products

PositionProduct
*83261WCI 08067961
*83259TOUCH, UP PAINT, ALMOND (NI)
*83262FASTENER-EDGE MTG (NOT ILLUSTRATED)
1WCI 316029405
2SHIELD-OVN TOP
3WCI 5303269543
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 08067992
3WCI 5303269545
4WCI 316011905
5SCREW-LEVELING
5316116000 Frigidaire Screw
5WCI 3934058
5NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8BTTM-OVEN
8316064600 Frigidaire Oven Support
9WCI 31673800
10WCI 316073900
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015453
18SHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20WCI 3203218
20WCI 08013188
21SPACER-BODYSIDE, (8)
22SWITCH-LATCH
22STUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
395304515659 Frigidaire Oven Power Cord
39BWCI 3131691
40WCI 3200836
40SCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
5308067973 Frigidaire 0 Insulation
53SHIELD-FRONT
58CINSULATION, OVEN TOP
58BWCI 316054200
58AINSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
