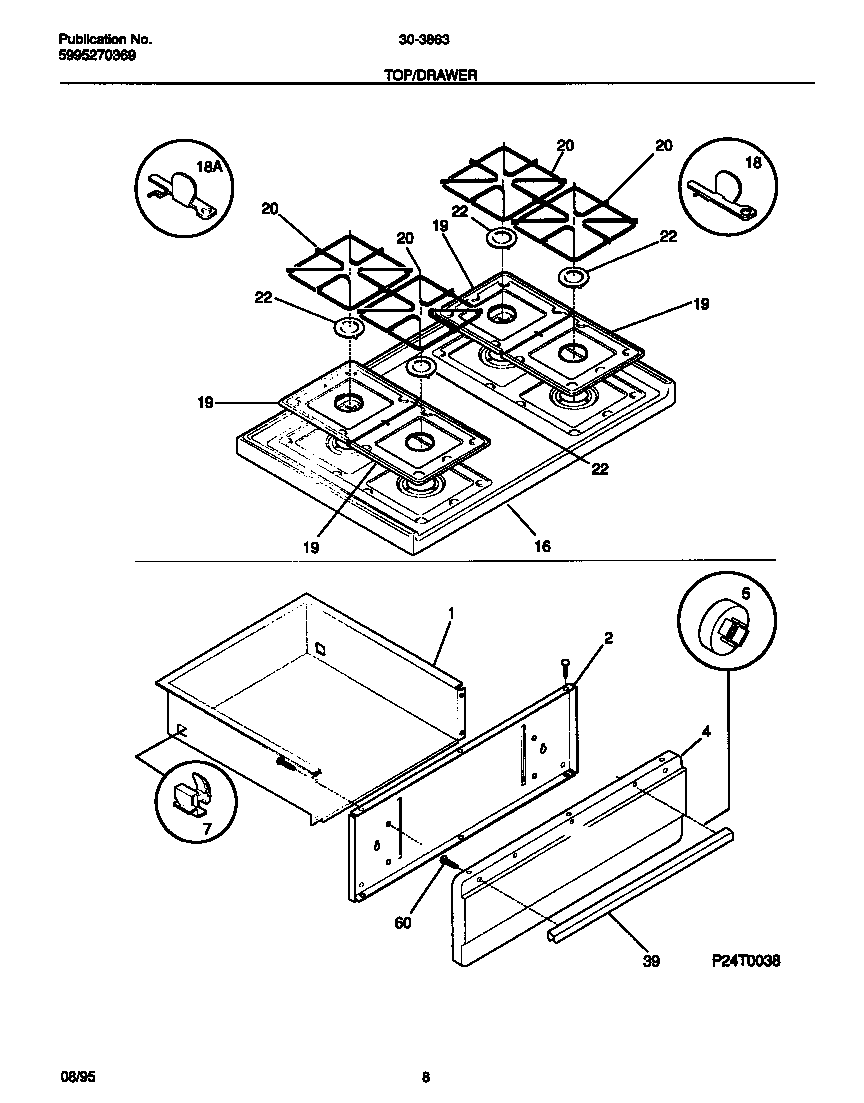

30-3863-23-04 05 – TOP/DRAWER

Products

Position	Product
*65569	3131903 Frigidaire Door/Drawer Bumper
*65572	131243700 Frigidaire Screw
*65571	WCI 5303281584
*65570	RIVET-POP, WARING-PLATE
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4	WCI 316056206
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 316010409
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18A	BRACKET-HINGE,MAIN TOP LH
18	BRACKET-HINGE,MAIN TOP RH
19	WCI 316011401
20	WCI 5303269632
22	316010901 Frigidaire Burner Cap P1
39	HANDLE-DRAWER, BRUSHED CHROME
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
