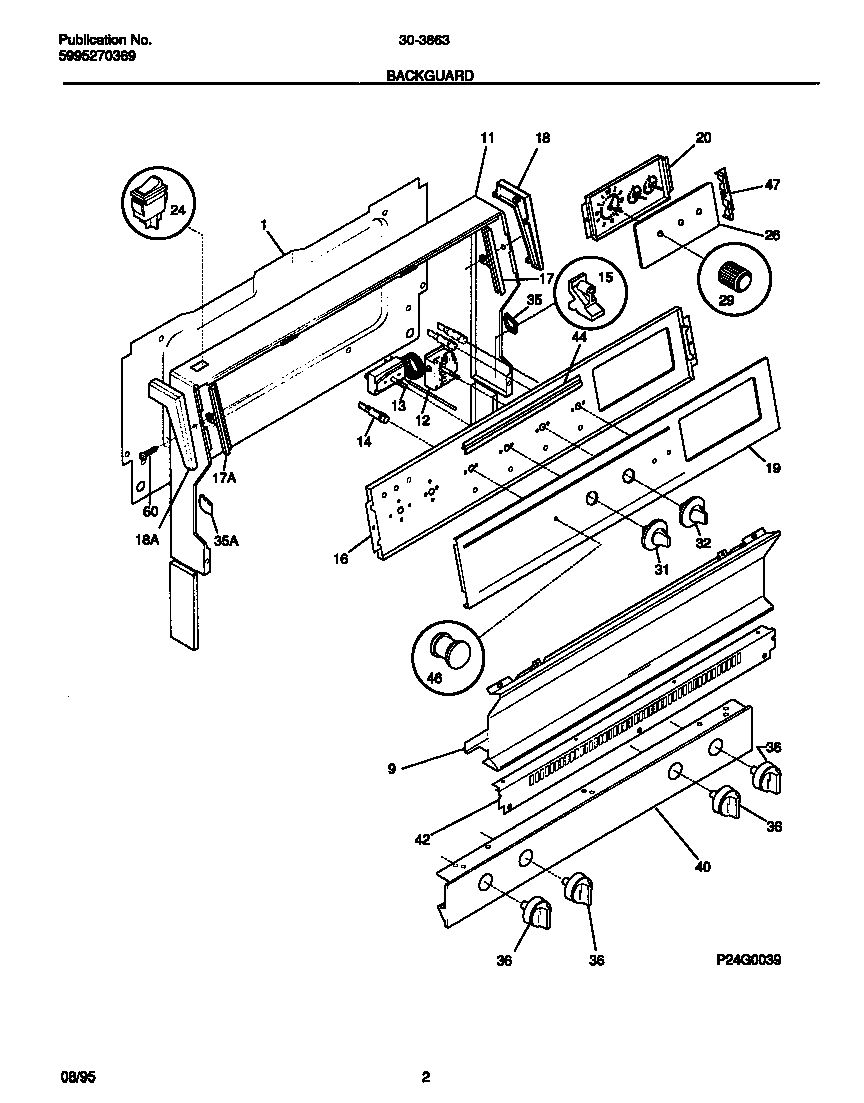

30-3863-23-05 02 – BACKGUARD

30-3863-23-05 02 – BACKGUARD

Written by

in

30-3863-23-05 02 – BACKGUARD

Products

PositionProduct
*65565WCI 316001454
*65562WCI 5303281584
*65563SCREW-END CAP
*65560WCI 3204745
*65561WCI 5303272555
1SHIELD-BACKGUARD,REAR WALL
9WCI 316043502
11WCI 316083712
12THERMOSTAT-BAKE
13SWITCH SELECTOR 5 POS
14AINDICATOR LIGHT-LOCK (1)
14WCI 5308037896
15SUPPORT-BACKGUARD,(2)
16WCI 316042601
17TRIM-GLASS RETAINER,RH
17ATRIM-GLASS RETAINER,LH
18AWCI 3204746
18WCI 3204747
19PANEL, CONTROL, METAL
20ELECTRICAL CLOCK
245304527841 Frigidaire Oven Rocker Switch (Black)
26WCI 3201695
29WCI 316029000
31WCI 5303286099
32WCI 5303286098
35CAP-RH
35ACAP-LH
36WCI 316023014
40WCI 316009242
42WCI 316084300
44WCI 3131468
46WCI 316065800
47RETAINER, CLOCK GLASS, (2)
60316021105 Frigidaire Oven Screw
