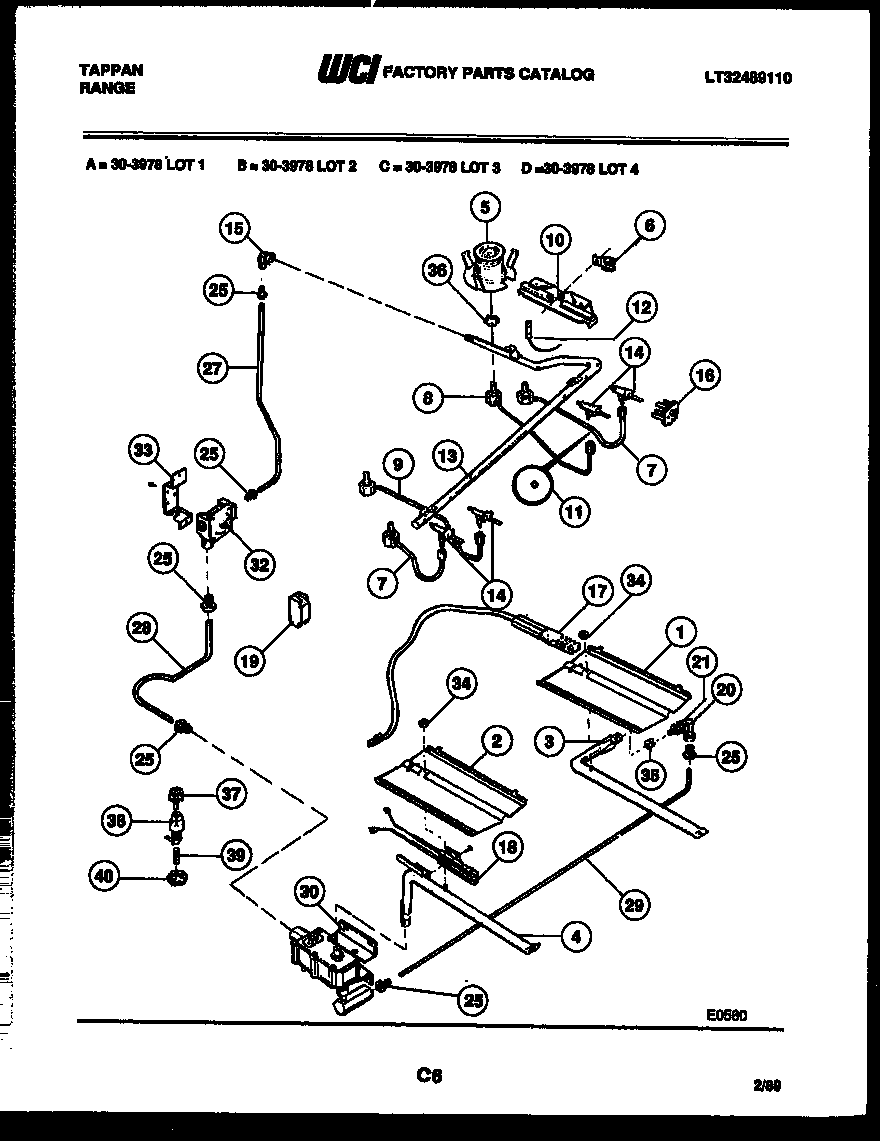

30-3978-00-01 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5BURNER TOP (4)
6RETAINER ELECTROS
7BURNER TUBE-RF & LF
8WCI 079T033H02
9WCI 079T033H03
10WCI 136T355W03
11WCI 247T074P01
12IGNITER-TOP BURNER (4)
13WCI 3018861
14WCI 3131126
15ANUT COMPRESSN (4)
15ELBOW 1/2 NP TO 9/16-24
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 455T008P02
21NUT
25FITTING-LOXIT (8)
27TUBE ALUMINUM 3/8
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
30A5300809968 Frigidaire Dishwasher P-1 Washer
305303208499 Frigidaire Safety Gas Valve
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36NUT SPECIAL
37CAP FUSE
38WCI 08067984
39FUSE, BUSS
40NUT FUSE
