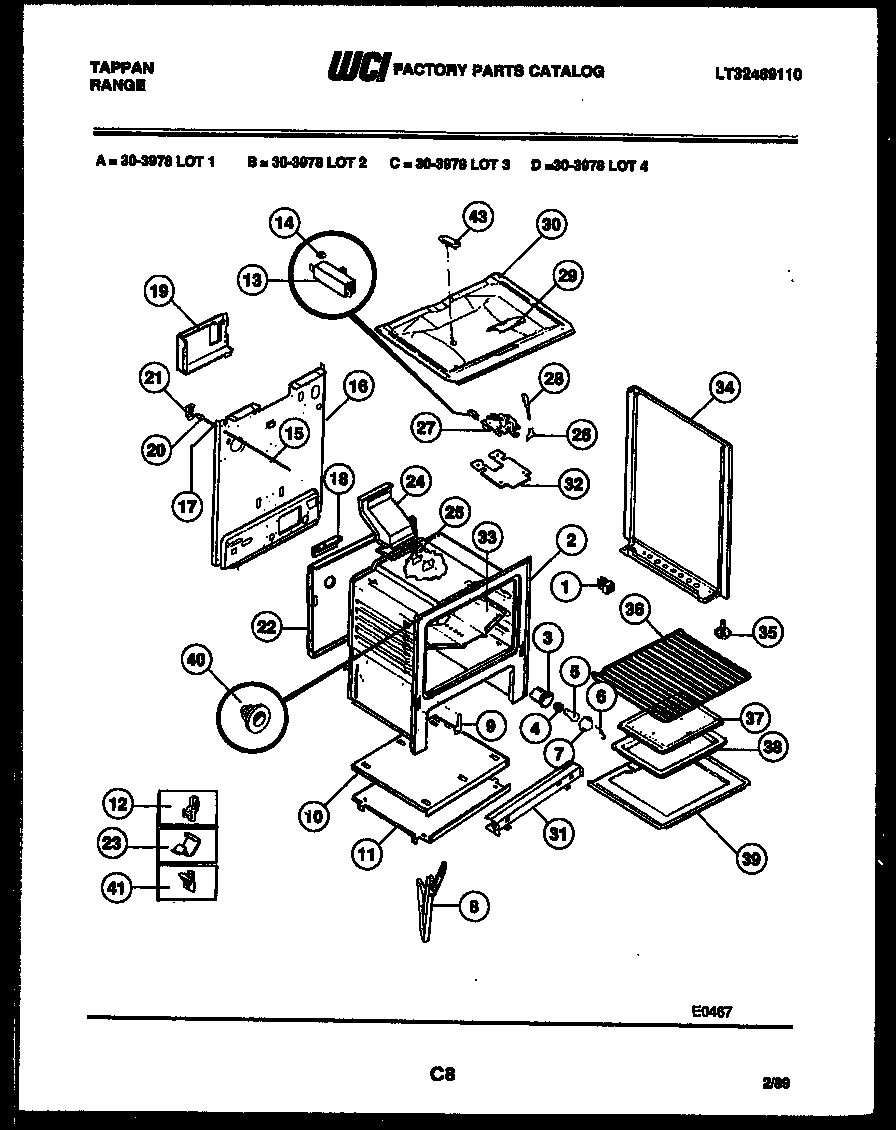

30-3978-00-01 06 – BODY PARTS

Products

Position	Product
*17997	WASHER-BLACK
*17997	ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1	SPACER-BODYSIDE, (8)
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	RETAINER-LENS
7	WCI 3131298
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11	WCI 3131313
11A	WCI 665T437F01
12	CLIP-TUBING (2)
13	WCI 3131672
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
14	FASTENER, PUSH ON (3)
15A	5304534000 Frigidaire Cord
15	WCI 3051251
16	WCI 3131567
17	ROD-LIGHT SWITCH
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 3131316
23	CLIP, WIRE
24	WCI 3131931
25B	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
25A	SHIELD-LATCH (NON-ILLUSTRATED)
25	316542102 Frigidaire Flue Gasket
26	WCI 358T158S02
27	WCI 3131972
28	WCI 3131357
29	WCI 3131101
30	WCI 095T030F02-86
31	SHIELD-FRONT
32	SHIELD-LATCH
33	WCI 3131315
34A	PNL. B/S (RH WHITE)
34	PNL. B/S (LH WHITE)
35	WCI 636M004P01
36	316067902 Frigidaire Oven Rack
37	WCI 3131356
38	WCI 3013568
39	WCI 058T036F03-86
39B	3131903 Frigidaire Door/Drawer Bumper
39A	316064600 Frigidaire Oven Support
40I	316282700 Frigidaire Oven Screw
40	BUTTON-REMOTE SW
40H	INSULATION-WRAP (NON-ILLUSTRATED)
40F	WCI 08068016
40C	08067973 Frigidaire 0 Insulation
40B	INSUL OVEN BACK (NON-ILLUSTRATED)
40A	FSTNR-POWER CORD (NON-ILLUSTRATED)
41	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
41B	WCI 3131590
41A	SHIELD-OVN TOP
43	WCI 3015371
