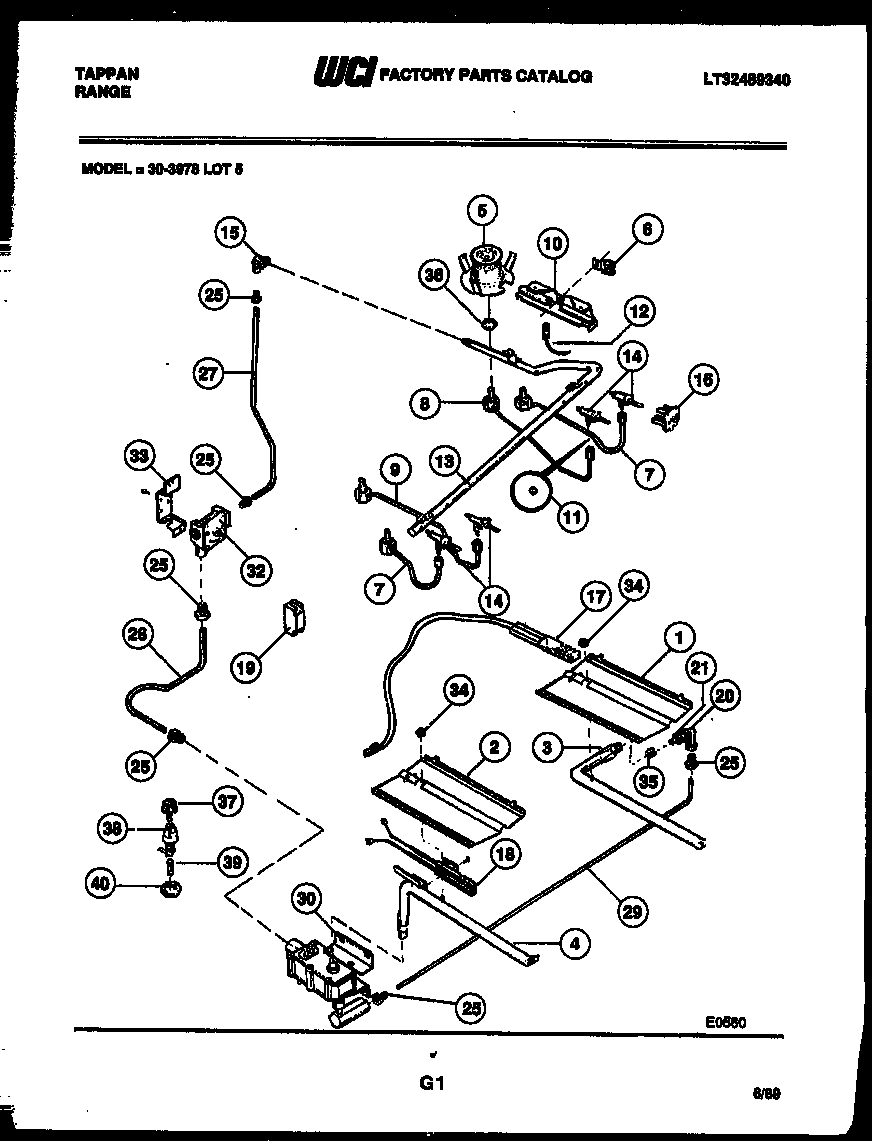

30-3978-00-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 3131283
2	BAFFLE-OVN BURNER
3	WCI 079T028P01
4	WCI 3131290
5	BURNER TOP (4)
6	RETAINER ELECTROS
7	BURNER TUBE-RF & LF
8	WCI 079T033H02
9	WCI 079T033H03
10	WCI 136T355W03
11	WCI 247T074P01
12	IGNITER-TOP BURNER (4)
13	WCI 3018861
14	WCI 3131126
14	WCI 3017846
15	ELBOW 1/2 NP TO 9/16-24
15A	NUT COMPRESSN (4)
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 455T008P02
21	NUT
25	FITTING-LOXIT (8)
27	TUBE ALUMINUM 3/8
28	TUBE-VALVE TO REGUL
29	TUBE-VALVE TO MIXER ELBOW
30A	5300809968 Frigidaire Dishwasher P-1 Washer
30	5303208499 Frigidaire Safety Gas Valve
32	5303935125 Frigidaire Pressure Regulator
33	316091600 Frigidaire Oven Bracket
34	5303013272 Frigidaire Oven Nut
35	SPUD NO 50
36	NUT SPECIAL
