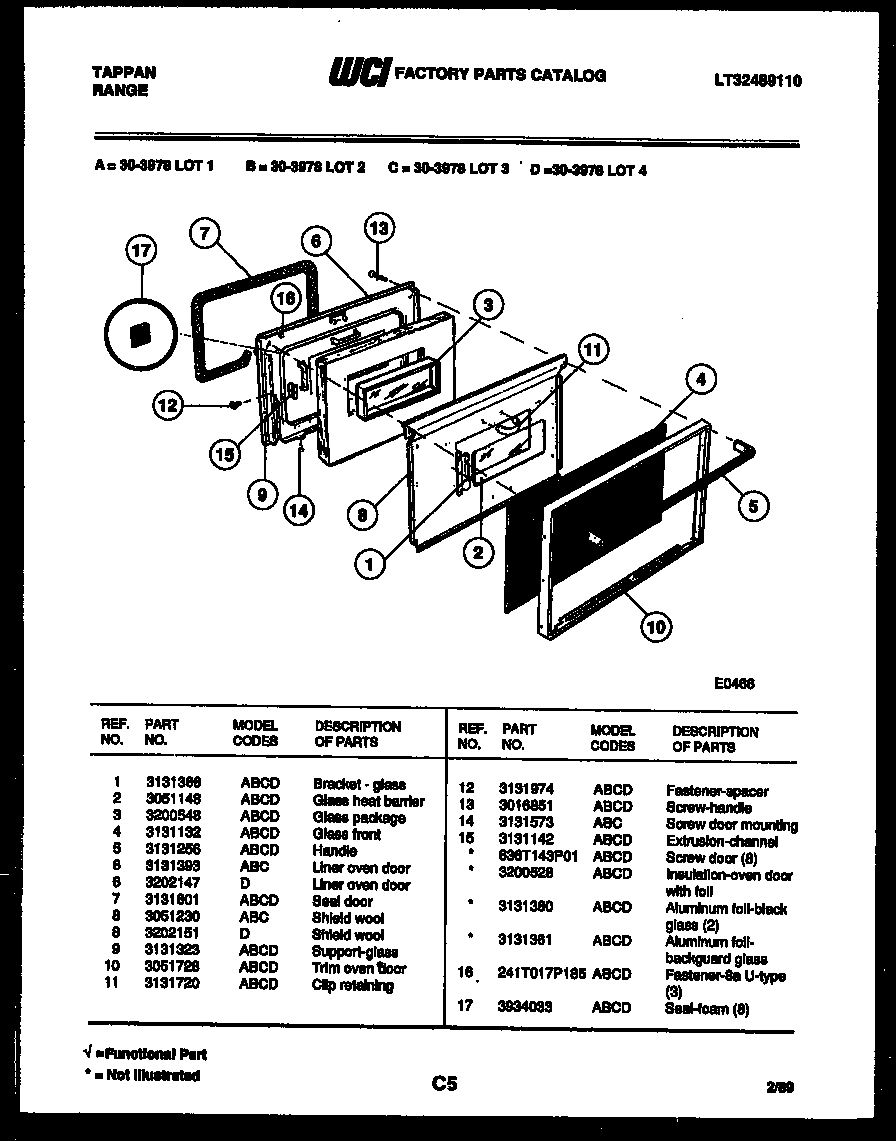

30-3978-23-01 04 – DOOR PARTS

Products

Position	Product
1	BRKT GLASS (2)
2	WCI 3051148
3	WCI 3200548
4	GLASS FRNT
5	WCI 3131256
6	WCI 3131393
7	5303131601 Frigidaire Oven Seal
8	WCI 3051230
9	SUPPORT, GLASS
10	WCI 3051728
11	CLIP-RETAINING
12	FSTNR. SPACER (6)
13	WCI 3016851
14	SCREW DOOR MTG
15	EXTRUSION-CHANNL
15A	5303300265 Frigidaire Oven Screw
15D	ALUM FOIL-B/G GLASS
15C	5303208655 Frigidaire Reflector Assembly
15B	INSUL OV DR W/ FOIL
16	FSTNR 8AU TYPE (3)
17	SEAL, FOAM (4)
