30-3978-23-03 02 – BACKGUARD – Aparts

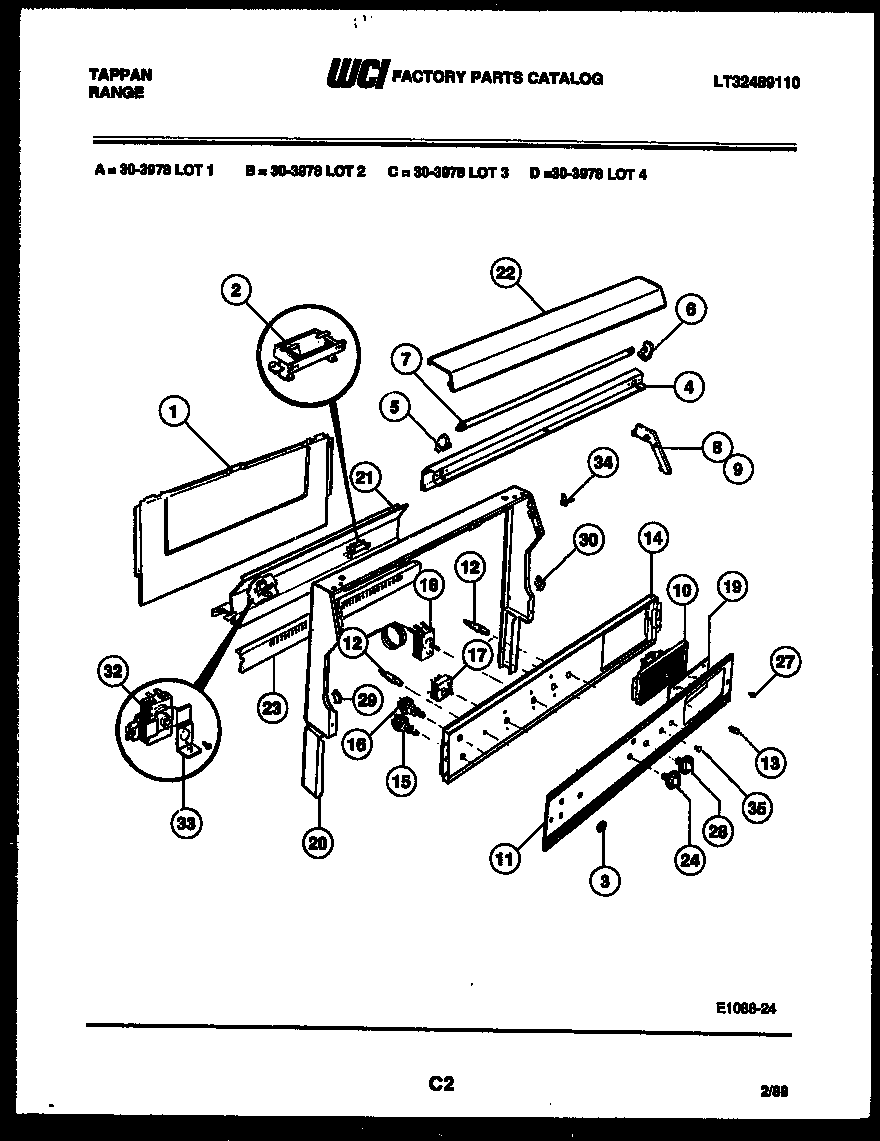

30-3978-23-03 02 – BACKGUARD

Products

Position	Product
1	SHIELD-BACKGUARD,REAR WALL
2	WCI 3051115
3	BEZEL - SWITCH (2)
4	WCI 3131277
5	RECEPTACLE-FLU LT LH
6	RECEPTACLE-FLU LT RH
7	BULB-FLUOR
8	CAP, END LH
9	CAP, END RH
10	ELECTRICAL CLOCK
11	WCI 3200670
12	INDICATOR LIGHT (4)
13	WCI 358T201P01
14	PLATE INSTR MOUNTING
15	WCI 3018620
16	SW.-FLUOR. LT.
17	SWITCH SLCTR-5 POS
18	THERMOSTAT BAKE
19	WCI 277T219P02
20	WCI 3016852
21	TRIM-SPLASHER
22	WCI 3131466
23	WCI 3131241
24	KNOB THERMOSTAT
27B	WCI 655T444P01
27	NUT - DECOR (2)
27A	RIVET - COVER
28	KNOB-SELECTOR SWITCH
29	CAP-LH
30	CAP-RH
32	WCI 722T071P01
33	ANGLE-S/C THERM. MTG
34	FASTENER, GLASS (2)
34A	WCI 3018821
35	WCI 3012956
