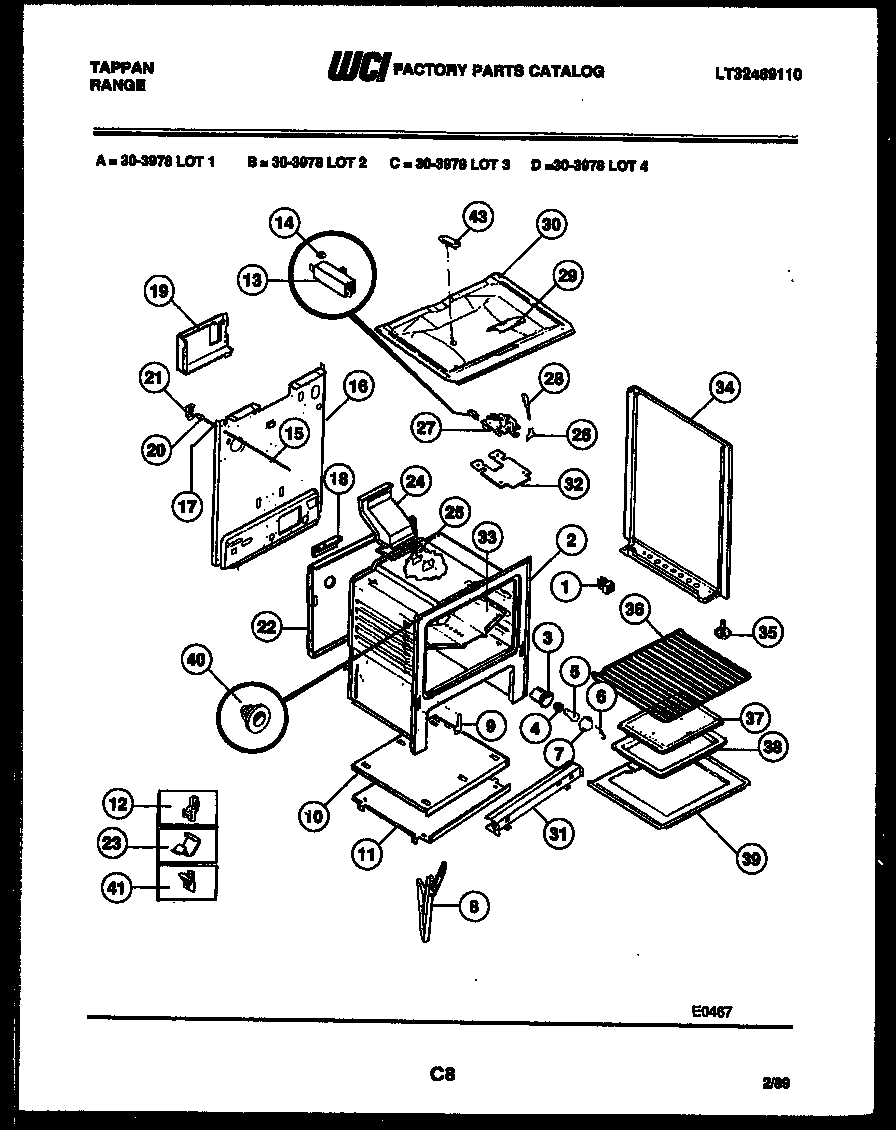

30-3978-23-04 06 – BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	RETAINER-LENS
7	WCI 3131298
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11A	WCI 665T437F01
11	WCI 3131313
12	CLIP-TUBING (2)
13	WCI 3131672
14	FASTENER, PUSH ON (3)
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
15A	5304534000 Frigidaire Cord
15	WCI 3051251
16	WCI 3131567
17	ROD-LIGHT SWITCH
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 3131316
23	CLIP, WIRE
24	WCI 3131931
25	316542102 Frigidaire Flue Gasket
25A	SHIELD-LATCH (NON-ILLUSTRATED)
25B	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
26	WCI 358T158S02
27	WCI 3131972
28	WCI 3131357
29	WCI 3131101
30	WCI 095T030F02-86
31	SHIELD-FRONT
33	WCI 3200836
34A	PNL B/S-LH (ALMOND)
34	PNL B/S-RH (ALMOND)
40E	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
40G	INSULATION, OVEN WRAPPER
