30-3979-00-01 02 – BACKGUARD

30-3979-00-01 02 – BACKGUARD

Written by

in

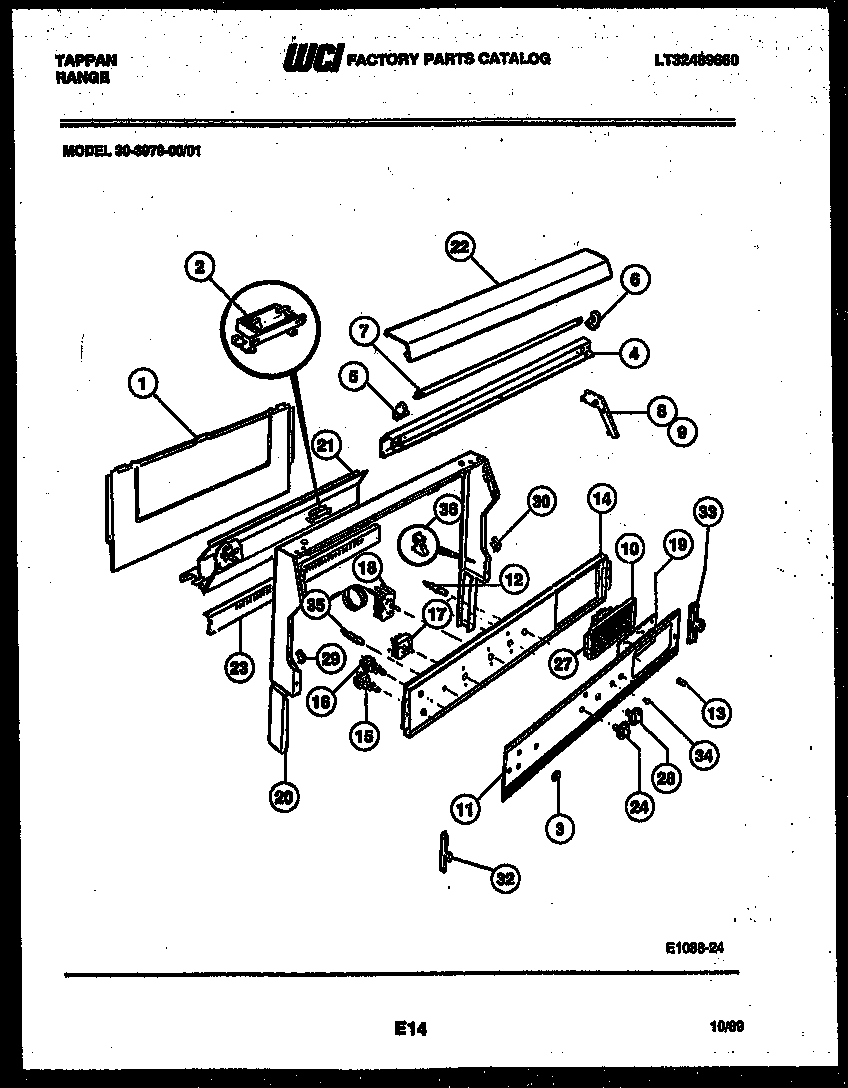

30-3979-00-01 02 – BACKGUARD

Products

PositionProduct
1SHIELD-BACKGUARD,REAR WALL
2WCI 3051115
3BEZEL – SWITCH (2)
4WCI 3131277
5RECEPTACLE-FLU LT LH
6RECEPTACLE-FLU LT RH
7BULB-FLUOR
8WCI 3204609
9WCI 3204610
10ELECTRICAL CLOCK
11WCI 3205466
12LIGHT – IND 125 V (2)
13KNOB-CLOCK
14WCI 3204636
15WCI 3200479
16SWITCH-FLUOR LIGHT
17SWITCH SLCTR-5 POS
18WCI 3203199
19WCI 3201695
20WCI 3204862
21TRIM-LOWER SPLASHER (WHITE)
22WCI 3204614
23WCI 3131241
24WCI 3205464
27RETAINER, CLOCK GLASS, (2)
28KNOB-SELECTOR SWITCH
29CAP-LH
30CAP-RH
32TRIM-GLASS RETAINER,LH
33TRIM-GLASS RETAINER,RH
34WCI 3012956
35LIGHT-IND. LOCK
35BWCI 3204745
35CRETAINER-LENS
35DWCI 3016408
35AWCI 3131468
36SUPPORT-BACKGUARD (2)
