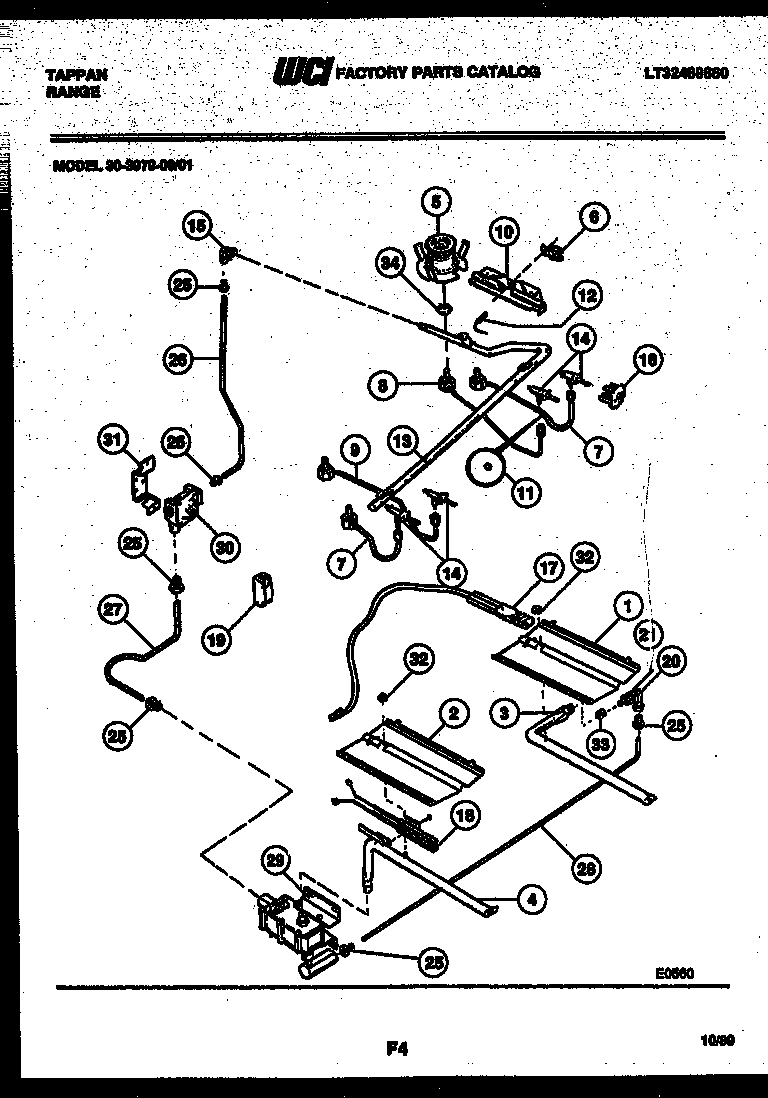

30-3979-00-01 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 3131283
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER TOP (4)
6	WCI 3018617
7	BURNER TUBE-RF & LF
8	WCI 3011569
9	WCI 3011570
10	WCI 136T355W03
11	WCI 3012358
12	IGNITER-TOP BURNER (4)
13	WCI 3018861
14	WCI 3017846
15	ELBOW 1/2 NP TO 9/16-24
15A	NUT COMPRESSN (4)
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 455T008P02
21	NUT
25	FITTING-LOXIT (8)
26	TUBE-REGUL TEE
27	TUBE-VALVE TO REGUL
28	TUBE-VALVE TO MIXER ELBOW
29	5303208499 Frigidaire Safety Gas Valve
30	5303935125 Frigidaire Pressure Regulator
31	316091600 Frigidaire Oven Bracket
32	5303013272 Frigidaire Oven Nut
33	SPUD NO 50
34	NUT, SPECIAL
