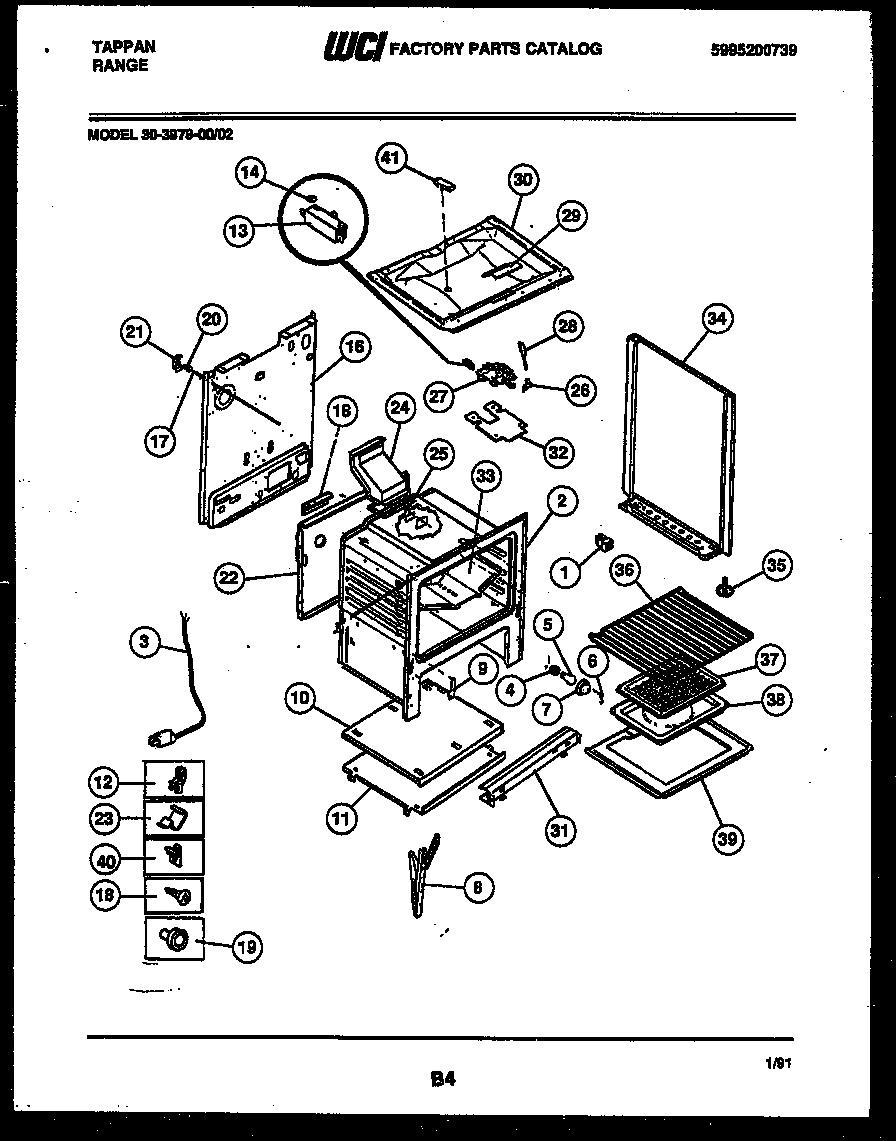

30-3979-00-02 06 – BODY PARTS

Products

Position	Product
*42766	WCI 19100180305
*42766	WCI 08068018
*42766	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	5304515659 Frigidaire Oven Power Cord
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11A	WCI 08067992
11	WCI 3131313
12	5303284616 Frigidaire Range Bulb Clip Thermostat
13	WCI 3131672
14	FSTNR-PUSH ON
14A	STUD SPACER (2) (NON-ILLUSTRATED)
16	WCI 3203082
17	WCI 5303209316
18	316282700 Frigidaire Oven Screw
19	3131903 Frigidaire Door/Drawer Bumper
20	SWITCH-OVEN LITE DOOR
21	WCI 5303131289
22	WCI 08067991
23	CLIP-WIRE
24	WCI 3131931
25B	SHIELD-LATCH (NON-ILLUSTRATED)
25	316542102 Frigidaire Flue Gasket
26	WCI 3203218
27	WCI 5303015453
28	WCI 5303131357
29	WCI 08067757
30	WCI 3011597
31	SHIELD-FRONT
32	SHIELD-LATCH
33	WCI 3200836
34	PNL-BODYSIDE RH-WHITE
34A	PNL-BODYSIDE LH-WHITE
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 5303131356
38	PAN-BROILER
39A	316064600 Frigidaire Oven Support
39D	08067973 Frigidaire 0 Insulation
39E	INSULATION, OVEN TOP
39G	INSULATION, OVEN WRAPPER
39	BTTM-OVEN
39B	WCI 08067961
39C	INSULATION OVEN BACK (NON-ILLUSTRATED)
39F	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
40	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
40A	SHIELD-OVN TOP
40B	WCI 3131590
41	WCI 3015371
