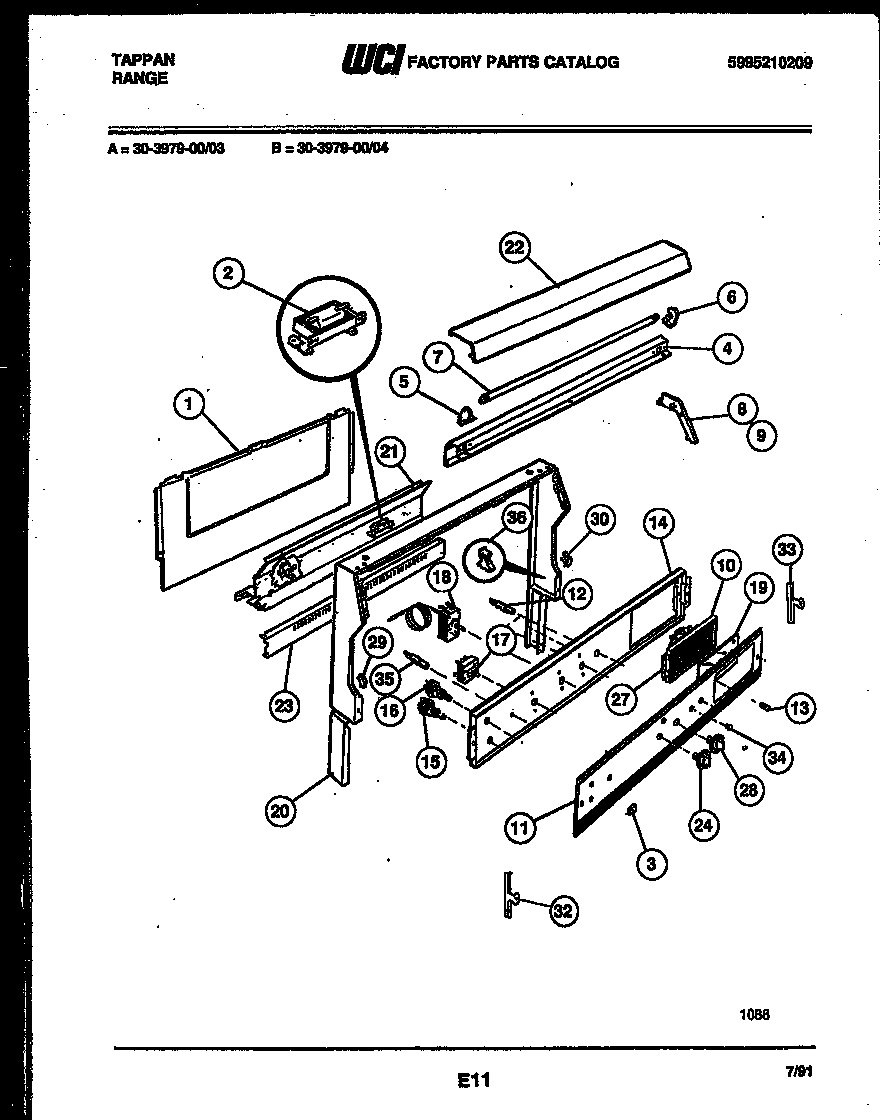

30-3979-00-03 02 – BACKGUARD

30-3979-00-03 02 – BACKGUARD

Written by

in

30-3979-00-03 02 – BACKGUARD

Products

PositionProduct
*57725WCI 5303272555
1WCI 5303279360
2WCI 5303051115
3WCI 5303011507
4WCI 3131277
5RECEPTACLE-FLU LT LH
6RECEPTACLE-FLU LT RH
7BULB-FLUOR
8WCI 3204609
9WCI 3204610
10ELECTRICAL CLOCK
11WCI 3205466
12WCI 5308037896
13KNOB-CLOCK
14PLATE – INST MOUNTING
15WCI 5303200479
16SWITCH FL LIGHT
17SWITCH SELECTOR 5 POS
18THERMOSTAT-BAKE
19WCI 3201695
20WCI 3204862
21TRIM-LOWER SPLASHER (WHITE)
21TRIM-LWR SPLSHR (ALMD)
22WCI 3204614
23WCI 3131241
24WCI 3205464
27RETAINER, CLOCK GLASS, (2)
28KNOB-SELECTOR SWITCH
29CAP-LH
30CAP-RH
32TRIM-GLASS RETAINER,LH
33TRIM-GLASS RETAINER,RH
34JEWEL LENS-AMBER
35DWCI 3016408
35INDICATOR LIGHT-LOCK (1)
35BWCI 3204745
35CRETAINER-LENS
35AWCI 3131468
36SUPPORT-BACKGUARD,(2)
