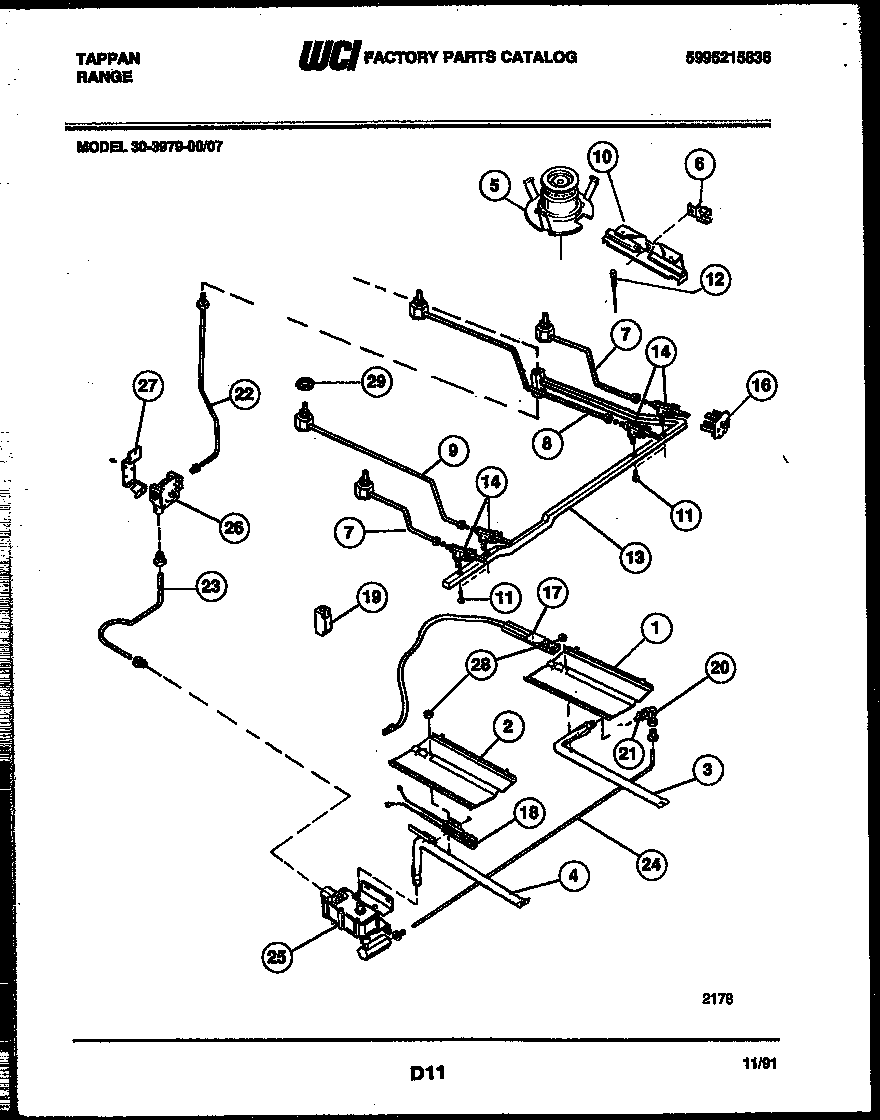

30-3979-00-07 05 – BURNER, MANIFOLD AND GAS CONTROL

30-3979-00-07 05 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

30-3979-00-07 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7TUBE-BURNER, LF
7ATUBE-BURNER, RF
8TUBE-BURNER, RR
9TUBE-BURNER, LR
10WCI 3206267
11316048200 Frigidaire Oven Screw
12ELECTRODE
13WCI 5303271375
14VALVE-TOP 3 POS (4)
16SWITCH-IGNITER (4)
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 5303208640
21NUT
22TUBE-ALUM 3/8 REG/MANIFOLD PIPE
23TUBE-VALVE TO REGUL
24TUBE-VALVE TO MIXER ELBOW
255303208499 Frigidaire Safety Gas Valve
265303935125 Frigidaire Pressure Regulator
27316091600 Frigidaire Oven Bracket
285303013272 Frigidaire Oven Nut
29NUT, SPECIAL
