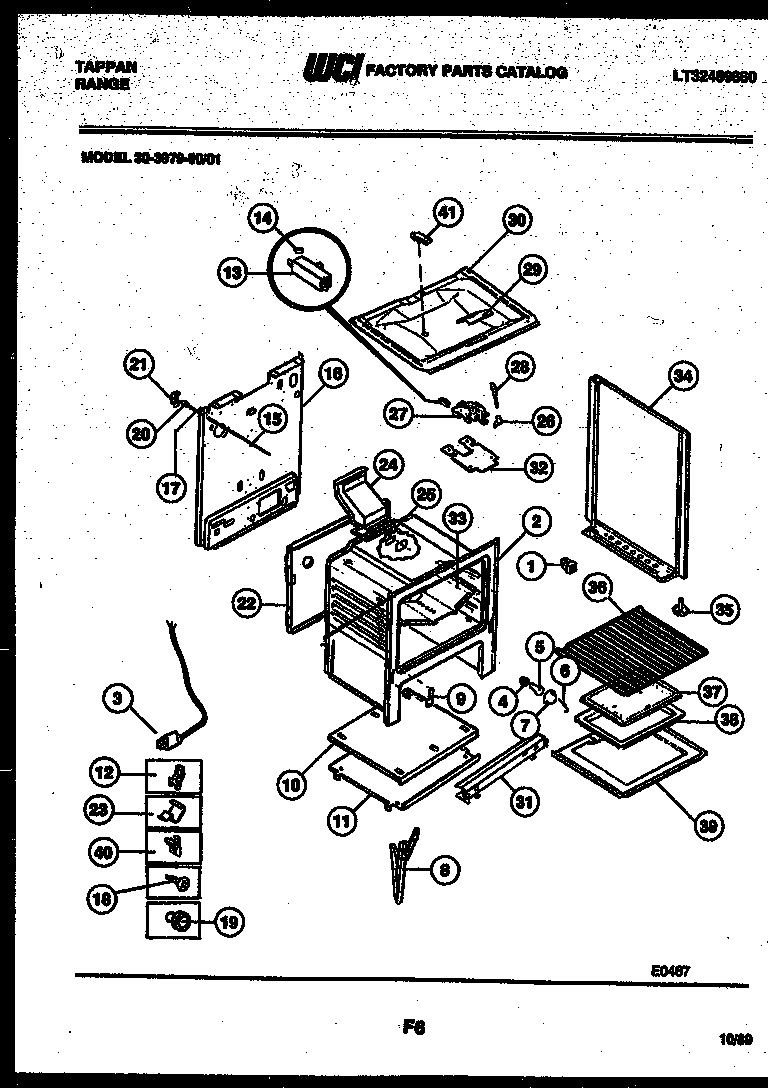

30-3979-23-01 06 – BODY PARTS

Products

Position	Product
*32783	ANTI-TIP KIT (NOT ILLUSTRATED)
*32782	WCI 08068018
1	SPACER-BODYSIDE, (8)
3	HANDLE ASSY W/ CAP & TRIM-FREEZER
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11A	WCI 665T437F01
11	WCI 3131313
12	5303284616 Frigidaire Range Bulb Clip Thermostat
13	WCI 3131672
14	FASTENER, PUSH ON (3)
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
15	WCI 3051251
16	WCI 3203082
17	ROD-LIGHT SWITCH
18	316282700 Frigidaire Oven Screw
19	3131903 Frigidaire Door/Drawer Bumper
20	WCI 3202622
21	BRACKET LT. SW.
22	WCI 3131316
23	CLIP-WIRE
24	WCI 3131931
25A	SHIELD-LATCH (NON-ILLUSTRATED)
25	316542102 Frigidaire Flue Gasket
25B	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
26	WCI 358T158S02
27	WCI 3015453
28	WCI 3131357
29	WCI 3131101
30	WCI 3011597
31	SHIELD-FRONT
32	SHIELD-LATCH
33	WCI 3200836
34A	PNL B/S-RH (ALMOND)
34	PNL B/S-LH (ALMOND)
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 3131356
38	WCI 3013568
39A	316064600 Frigidaire Oven Support
39G	INSULATION, OVEN WRAPPER
39E	INSULATION, OVEN TOP
39C	INSULATION OVEN BACK (NON-ILLUSTRATED)
39F	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
39D	08067973 Frigidaire 0 Insulation
39	BTTM-OVEN
39B	FSTNR PWR CORD (2) (NON-ILLUSTRATED)
40B	WCI 3131590
40	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
40A	SHIELD-OVN TOP
41	WCI 3015371
