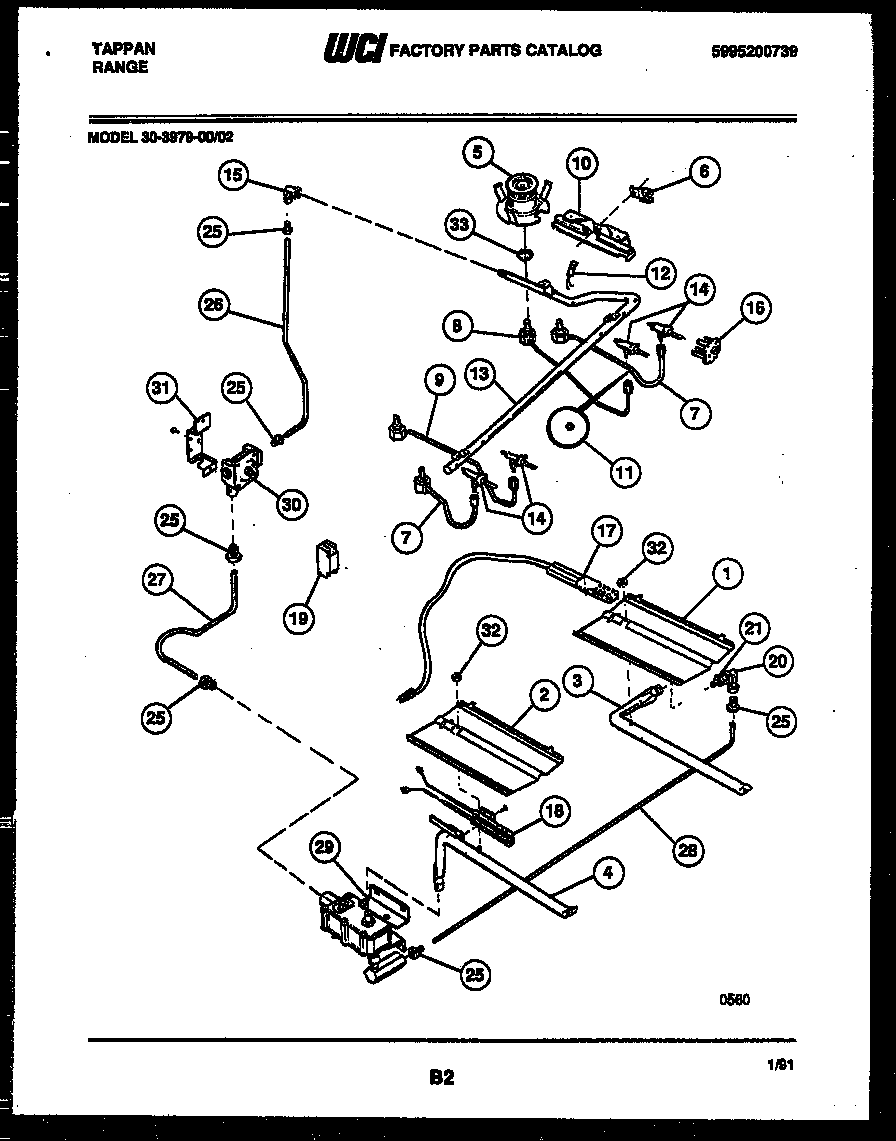

30-3979-23-02 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7BURNER TUBE-RF & LF
8WCI 5303011569
9WCI 5303011570
10WCI 3206267
11FERRULE (4)
12IGNITER-TOP BURNER (4)
13WCI 3018861
14VALVE 3 POS (4)
15ELBOW 1/2 NP TO 9/16-24
15ANUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 5303208640
21NUT
25FITTING-LOXIT (8)
26TUBE-ALUM 3/8 REG/MANIFOLD PIPE
27TUBE-VALVE TO REGUL
28TUBE-VALVE TO MIXER ELBOW
295303208499 Frigidaire Safety Gas Valve
305303935125 Frigidaire Pressure Regulator
31316091600 Frigidaire Oven Bracket
325303013272 Frigidaire Oven Nut
33NUT, SPECIAL
