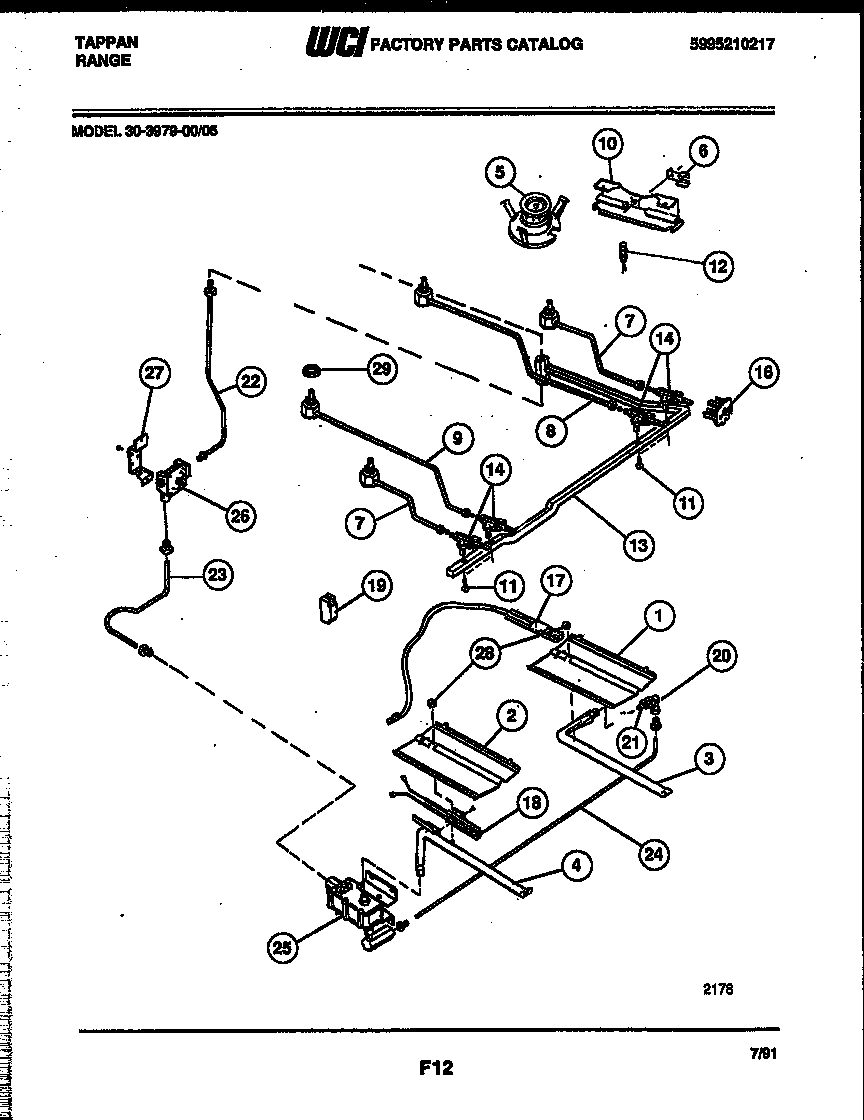

30-3979-23-05 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER TOP (4)
6	WCI 3018617
7A	TUBE-BURNER, RF
7	TUBE-BURNER, LF
8	TUBE-BURNER, RR
9	TUBE-BURNER, LR
10	WCI 3206267
12	316048200 Frigidaire Oven Screw
13	WCI 5303271375
14	VALVE TOP-3 POS
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 5303208640
21	NUT
22	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
23	TUBE-VALVE TO REGUL
24	TUBE-VALVE TO MIXER ELBOW
25	5303208499 Frigidaire Safety Gas Valve
26	5303935125 Frigidaire Pressure Regulator
27	316091600 Frigidaire Oven Bracket
28	5303013272 Frigidaire Oven Nut
29	NUT, SPECIAL
