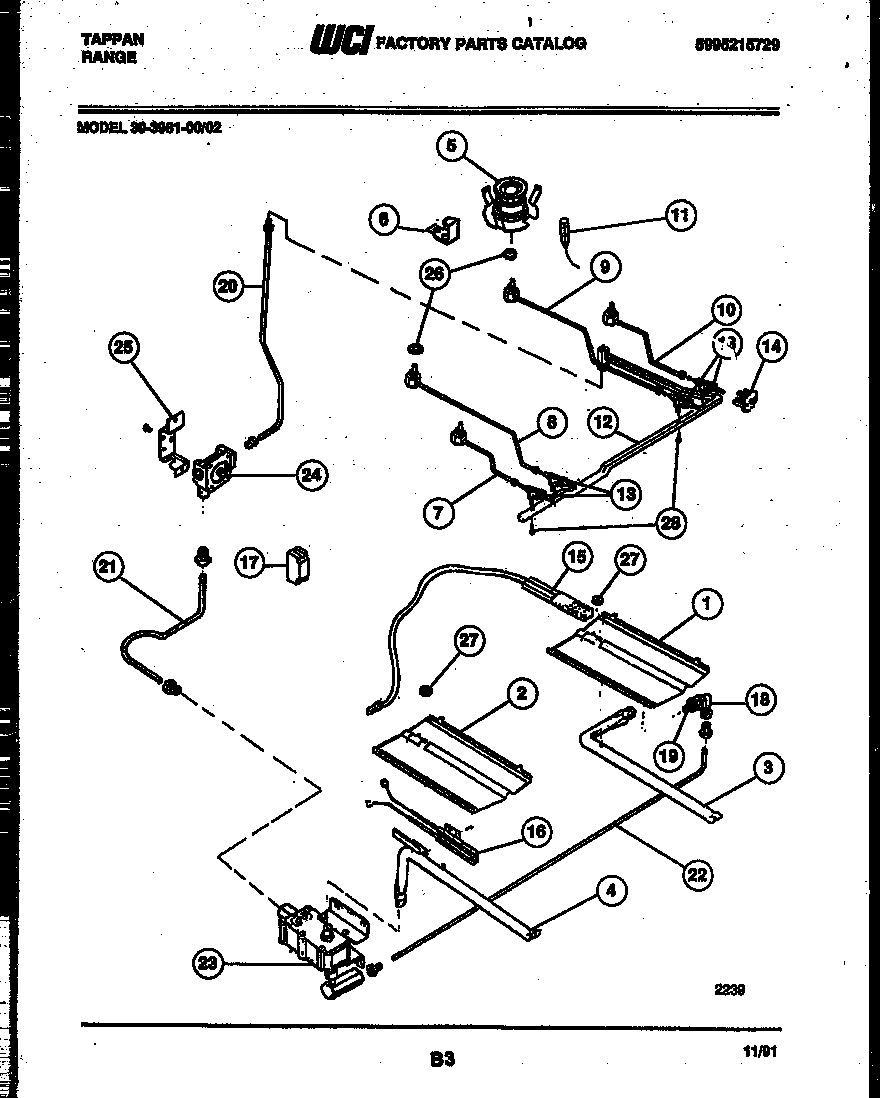

30-3981-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3018617
7TUBE-BURNER, LF
8TUBE-BURNER, LR
9TUBE-BURNER, RR
10TUBE-BURNER, RF
11ELECTRODE
12WCI 5303271375
13VALVE-TOP 3 POS (4)
14SWITCH-IGNITER (4)
155303935068 Frigidaire Flat Igniter
165303935066 Frigidaire Oven Flat Igniter 17" Leads
175303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18WCI 08067979
19NUT
20TUBE-ALUM 3/8 REG/MANIFOLD PIPE
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
245303935125 Frigidaire Pressure Regulator
25316091600 Frigidaire Oven Bracket
26NUT, SPECIAL
275303013272 Frigidaire Oven Nut
28316048200 Frigidaire Oven Screw
