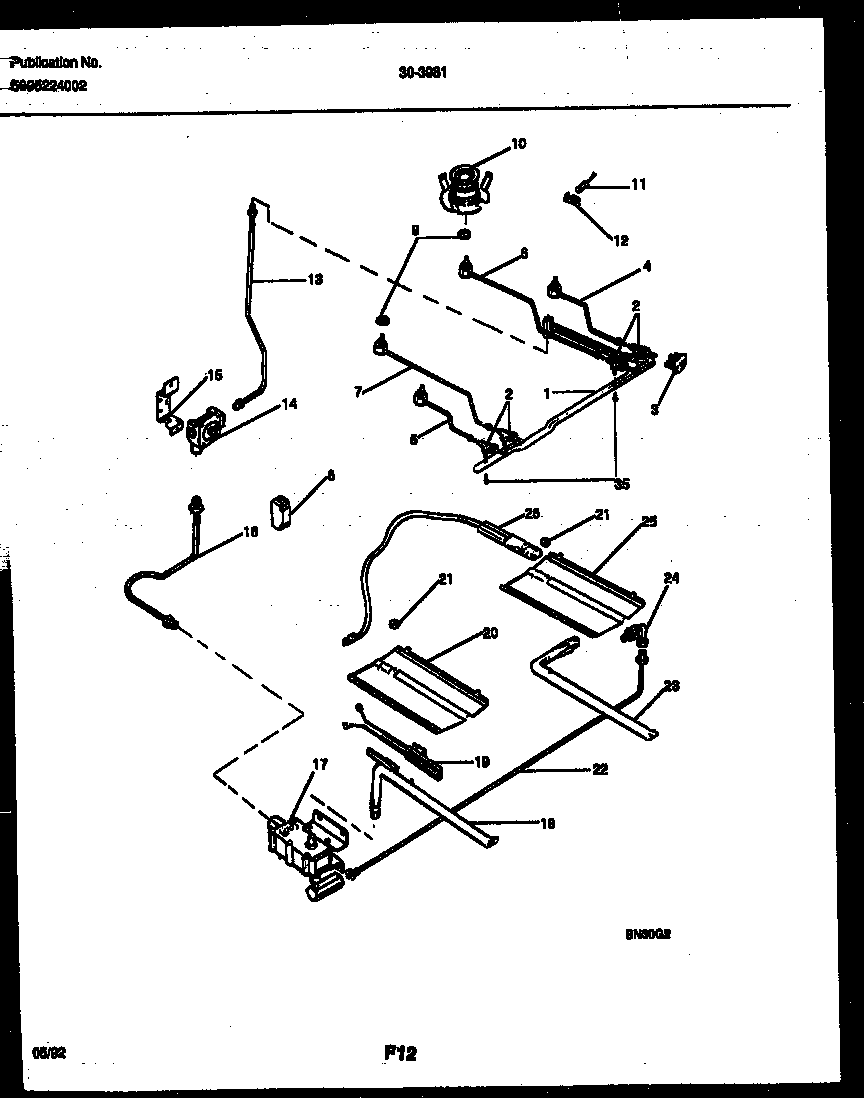

30-3981-00-03 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303271375
2	VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
3	SWITCH-IGNITER, (4)
4	WCI 5303283665
5	WCI 5303283666
6	WCI 5303283667
7	WCI 5303283668
8	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9	NUT, SPECIAL
10	BURNER TOP (4)
11	ELECTRODE
12	WCI 3018617
13	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
14	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	TUBE-VALVE TO REGUL
17	5303208499 Frigidaire Safety Gas Valve
18	WCI 3131290
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	BAFFLE-OVN BURNER
21	5303013272 Frigidaire Oven Nut
22	TUBE-VALVE TO MIXER ELBOW
23	WCI 08067935
24	WCI 5303208640
25	WCI 5303210379
26	5303935068 Frigidaire Flat Igniter
35	316048200 Frigidaire Oven Screw
