30-3981-00-05 03 – BURNER

30-3981-00-05 03 – BURNER

Written by

in

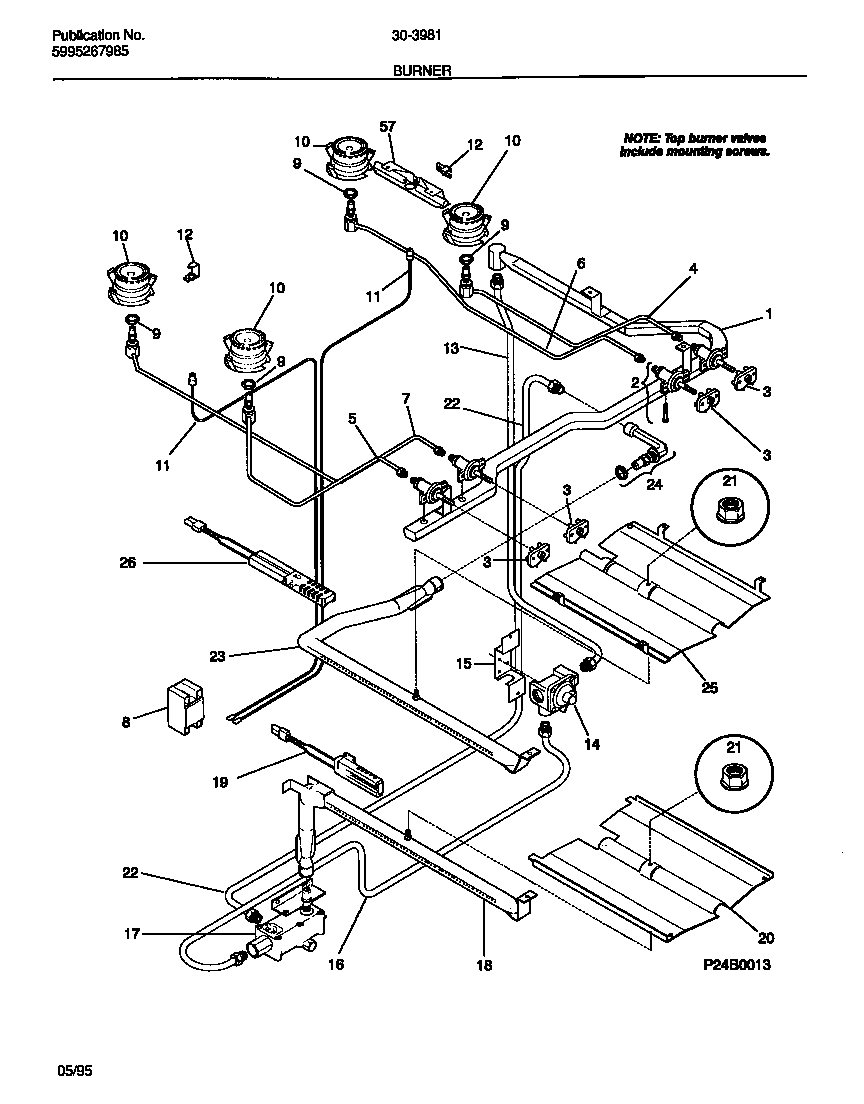

30-3981-00-05 03 – BURNER

Products

PositionProduct
*41481HARNESS-WIRING, IGNITER SW./MDL (NOT ILLUSTRATED)
1WCI 316066201
2VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
3SWITCH-IGNITER, (4)
4WCI 316051400
5WCI 316051401
6WCI 316051402
7WCI 316051403
85303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
9NUT, SPECIAL
10BURNER TOP (4)
11ELECTRODE
12WCI 3018617
13TUBE-ALUM 3/8 REG/MANIFOLD PIPE
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16TUBE-VALVE TO REGUL
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22TUBE-VALVE TO MIXER ELBOW
23WCI 08067935
24WCI 5303208640
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
57WCI 3206267
