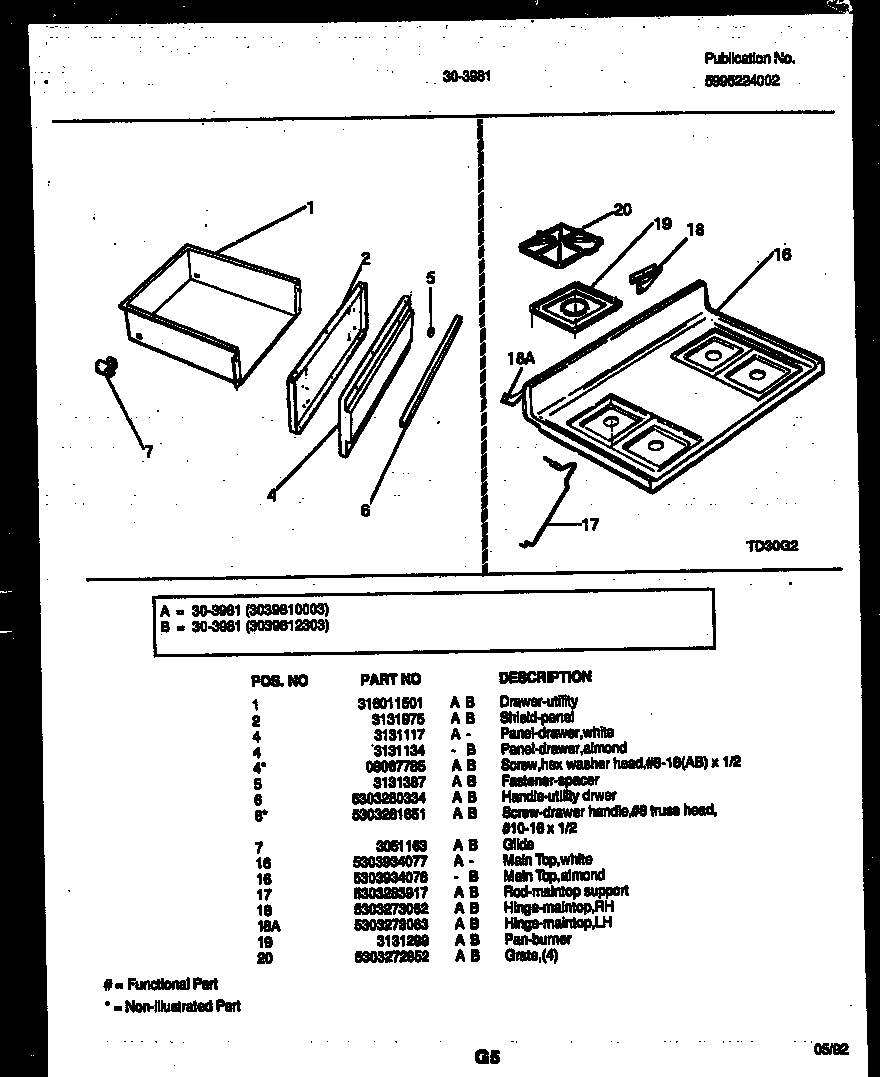

30-3981-23-03 07 – COOKTOP AND DRAWER PARTS

Products

Position	Product
1	DRAWER-UTILITY
2	SHIELD-PNL
4	PANEL – BROILER ALMD
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
6A	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
6	HANDLE
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303934078
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	WCI 3131299
20	WCI 5303272852
