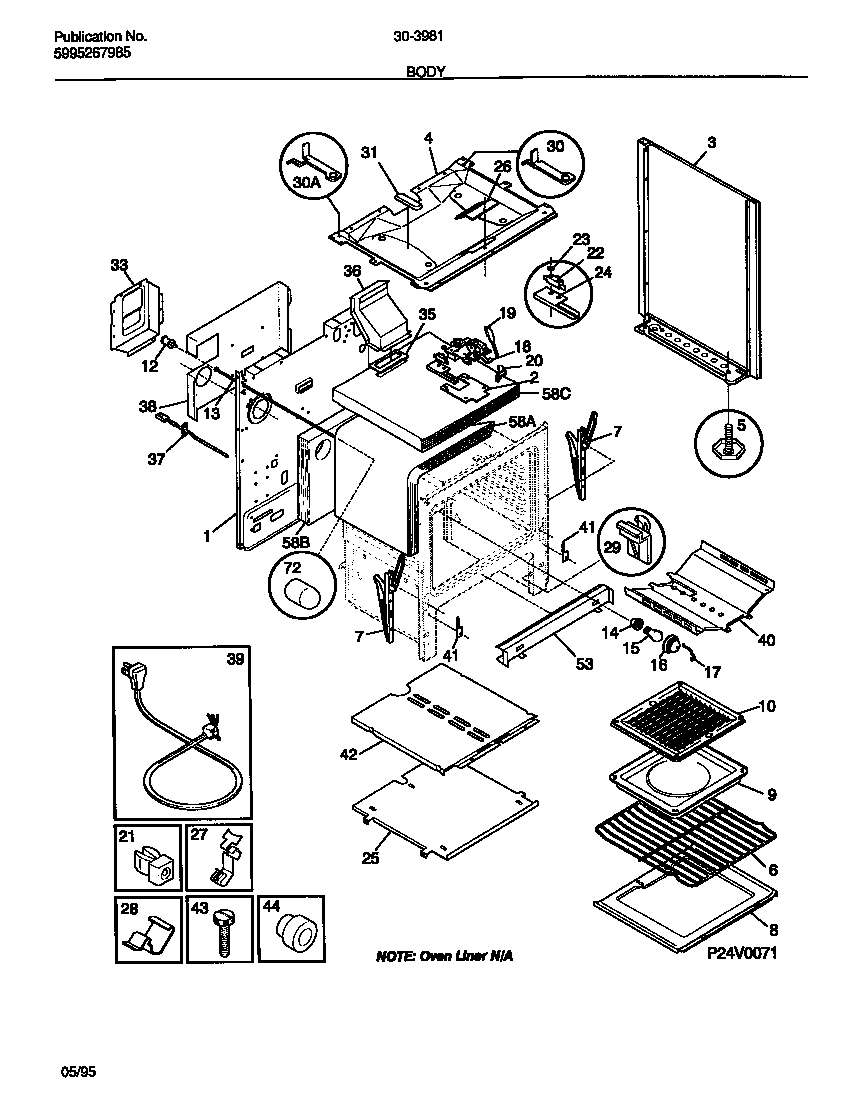

30-3981-23-05 04 – BODY

Products

PositionProduct
*41482HARNESS-WIRING, MAIN
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081006
3CWCI 08067992
3WCI 316081007
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3BFASTENER-EDGE MTG (NOT ILLUSTRATED)
4WCI 3011597
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5CANTI-TIP KIT (NOT ILLUSTRATED)
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8ABTTM-OVEN
8B316064600 Frigidaire Oven Support
9WCI 316073800
10WCI 3205234
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18AWCI 5303015453
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20BWCI 08013188
20AWCI 3203218
21SPACER-BODYSIDE, (8)
22BSTUD SPACER (2) (NON-ILLUSTRATED)
22ASWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP, LH
30BRACKET-HINGE, MAIN TOP RH
31WCI 3015371
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
39A5304515659 Frigidaire Oven Power Cord
39BWCI 08067961
40WCI 316035301
41BEZEL-SWITCH (1)
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
53ASHIELD-FRONT
53B08067973 Frigidaire 0 Insulation
58INSULATION, OVEN TOP
58WCI 316054200
58INSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
