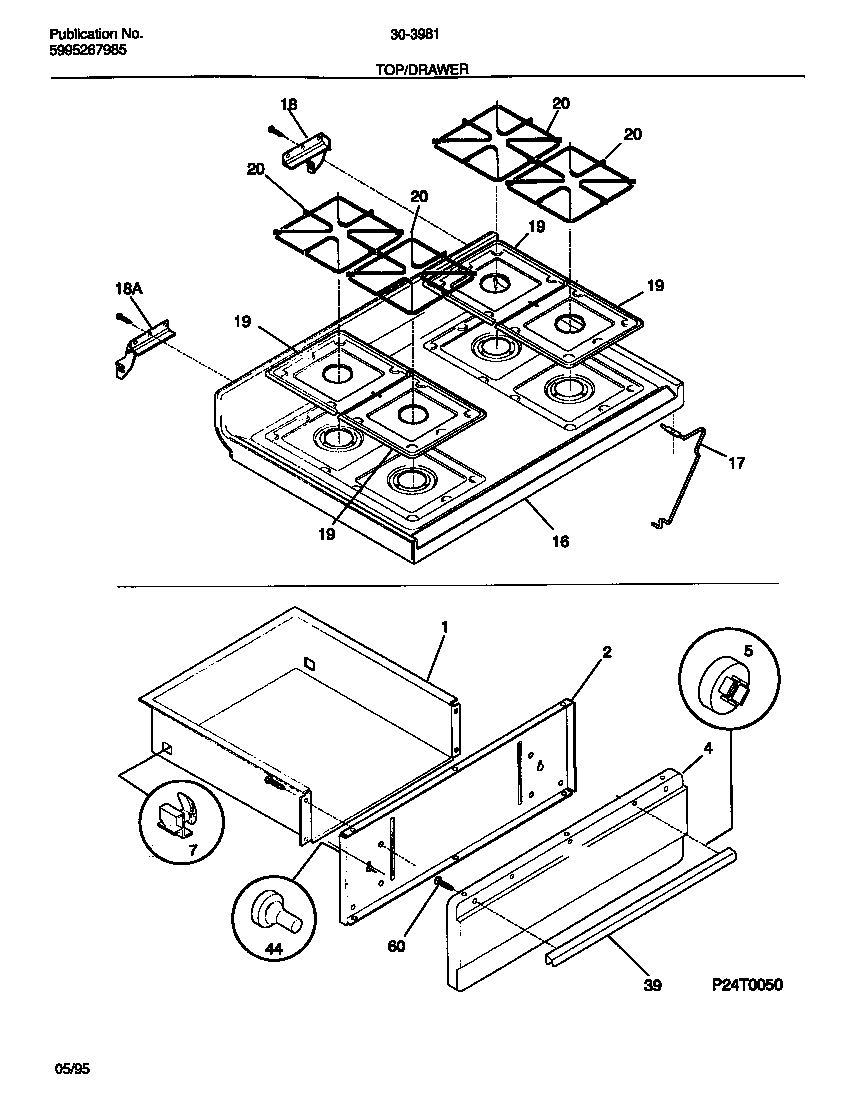

30-3981-23-05 05 – TOP/DRAWER

Products

Position	Product
*41483	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
4	WCI 316056206
4	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303934078
17	316057601 Frigidaire Oven Rod
18	HINGE-MAIN TOP (RH)
18	131243700 Frigidaire Screw
18	HINGE-MAIN TOP (LH)
19	WCI 316011403
20	WCI 5303272852
39	HANDLE-DRAWER, ALMOND
44	3131903 Frigidaire Door/Drawer Bumper
60	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
