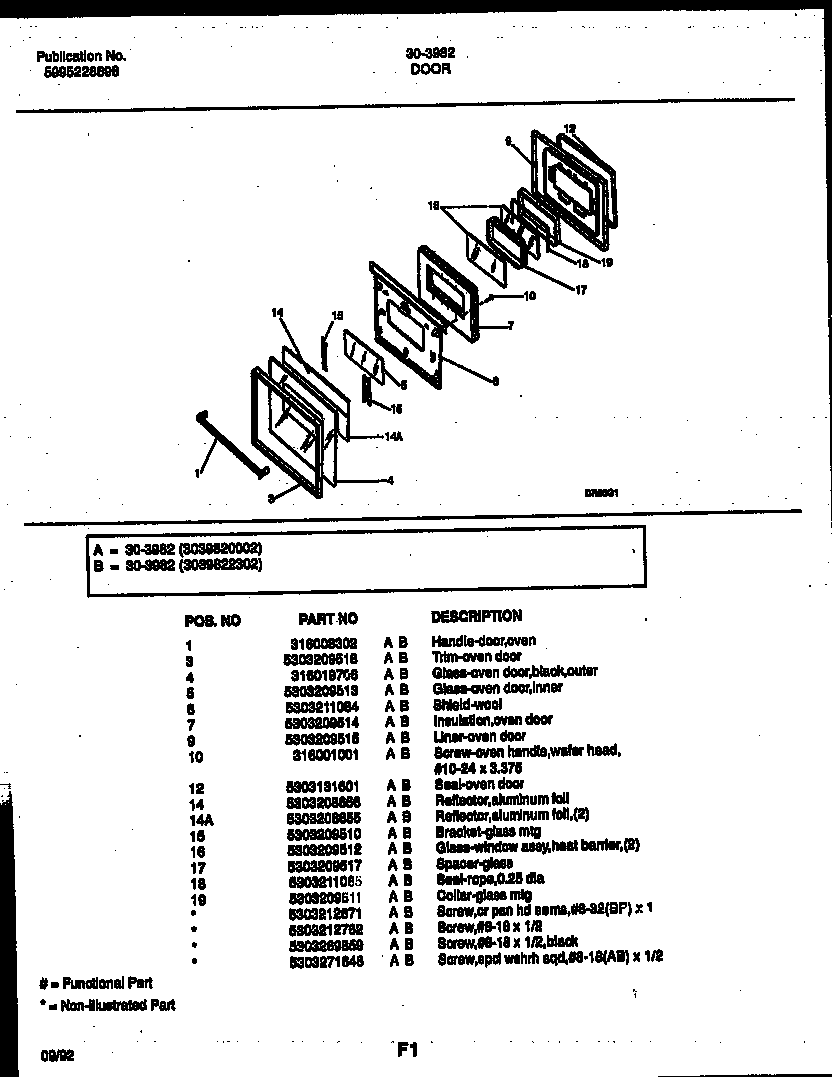

30-3982-00-02 07 – DOOR PARTS

30-3982-00-02 07 – DOOR PARTS

Written by

in

30-3982-00-02 07 – DOOR PARTS

Products

PositionProduct
*80099SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*80100WCI 5303269859
*800995303300265 Frigidaire Oven Screw
*801005303271648 Frigidaire Oven Screw
1HANDLE-DOOR, OVEN
3WCI 5303209518
4WCI 316019706
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7INSULATION-OVEN DOOR
9WCI 5303209515
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
14A5303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 5303209511
