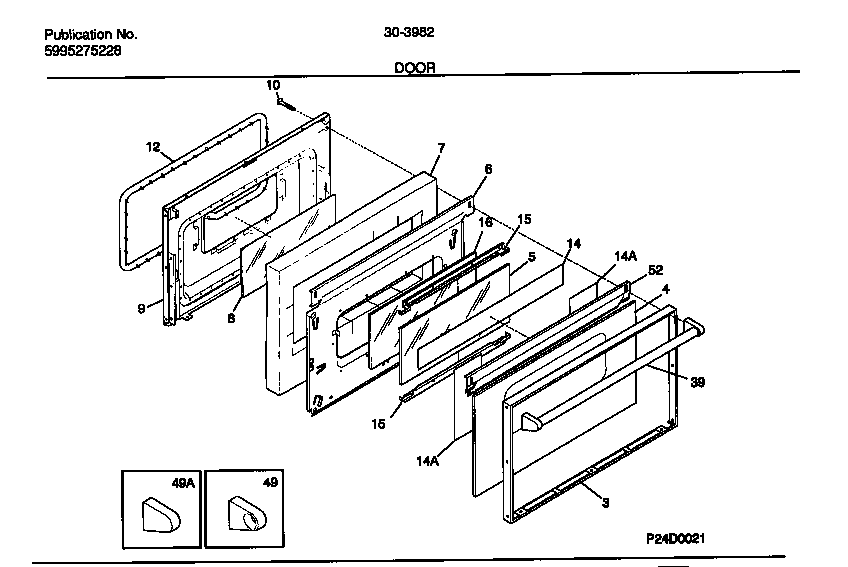

30-3982-00-07 06 – DOOR

30-3982-00-07 06 – DOOR

Written by

in

30-3982-00-07 06 – DOOR

Products

PositionProduct
*40530WCI 316065300
*40537131243700 Frigidaire Screw
*40535WCI 5303280311
*405345303271648 Frigidaire Oven Screw
*405365303285179 Frigidaire Oven Door Screw
*40531SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*405325303300265 Frigidaire Oven Screw
*40533WCI 5303269859
3WCI 316067802
4WCI 316089000
5GLASS-OVEN DOOR, AIRWASH
6WCI 316088401
7WCI 316076400
8WCI 316088700
9WCI 316066610
10SCREW-HANDLE MTG, WAFER HEAD, 10-24 X 3.375
125303131601 Frigidaire Oven Seal
145303208655 Frigidaire Reflector Assembly
14REFLECTOR, ALUMINUM FOIL
15WCI 316081401
16WCI 316085700
39HANDLE-DOOR, OVEN
49WCI 5303307192
49WCI 5303307193
52WCI 316081303
