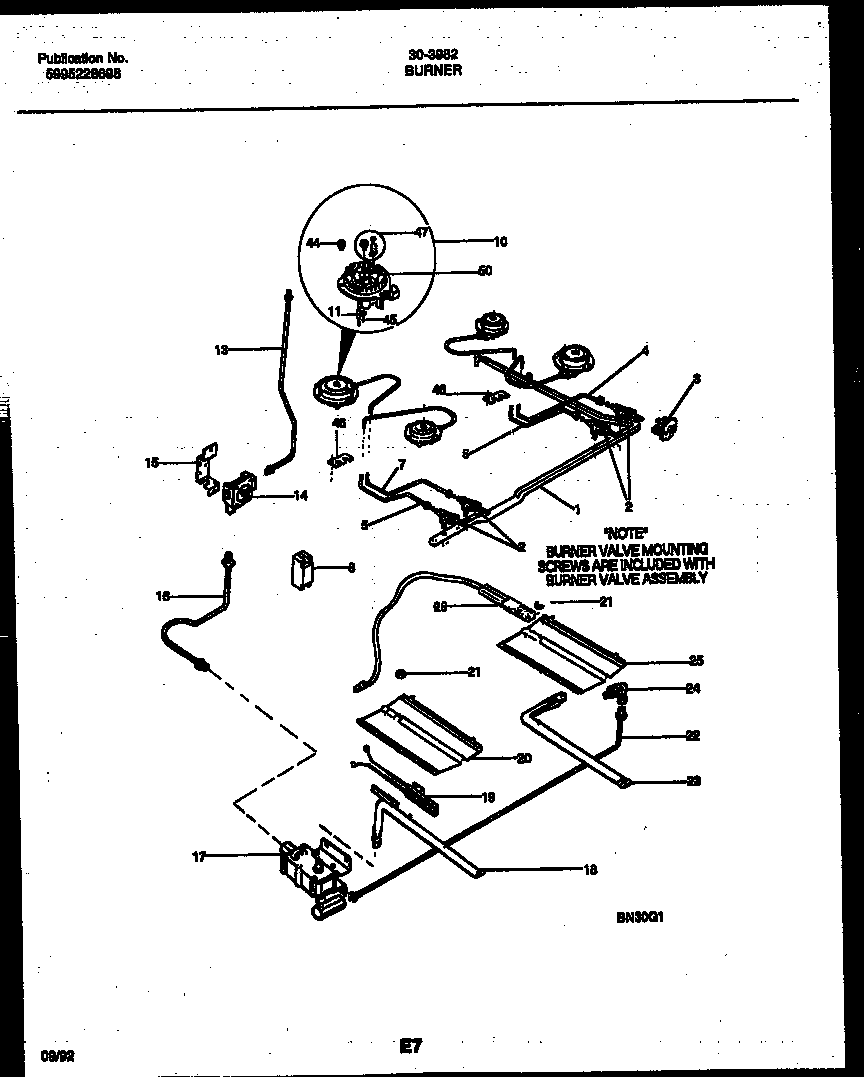

30-3982-23-02 03 – BURNER PARTS

Products

Position	Product
1	WCI 5303271375
2	WCI 316020400
3	SWITCH-IGNITER, (4)
4	BURNER TUBE-RF
5	316059613 Frigidaire Oven Tube-LF
6	BURNER TUBE-RR
7	316059615 Frigidaire Oven Tube
8	5304505695 Frigidaire Oven Module
10	WCI 316010600
11	316011200 Frigidaire Oven Top Burner Igniter
13	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
14	5303935125 Frigidaire Pressure Regulator
15	316091600 Frigidaire Oven Bracket
16	TUBE-VALVE TO REGUL
17	5303208499 Frigidaire Safety Gas Valve
18	WCI 3131290
19	5303935066 Frigidaire Oven Flat Igniter 17" Leads
20	BAFFLE-OVN BURNER
21	5303013272 Frigidaire Oven Nut
22	TUBE-VALVE TO MIXER ELBOW
23	WCI 08067935
24	WCI 5303208640
25	WCI 5303210379
26	5303935068 Frigidaire Flat Igniter
44	ORIFICE-TOP BURNER, (4)
45	WCI 316011100
46	WCI 5303269491
47	WCI 5303286386
50	WCI 316010700
