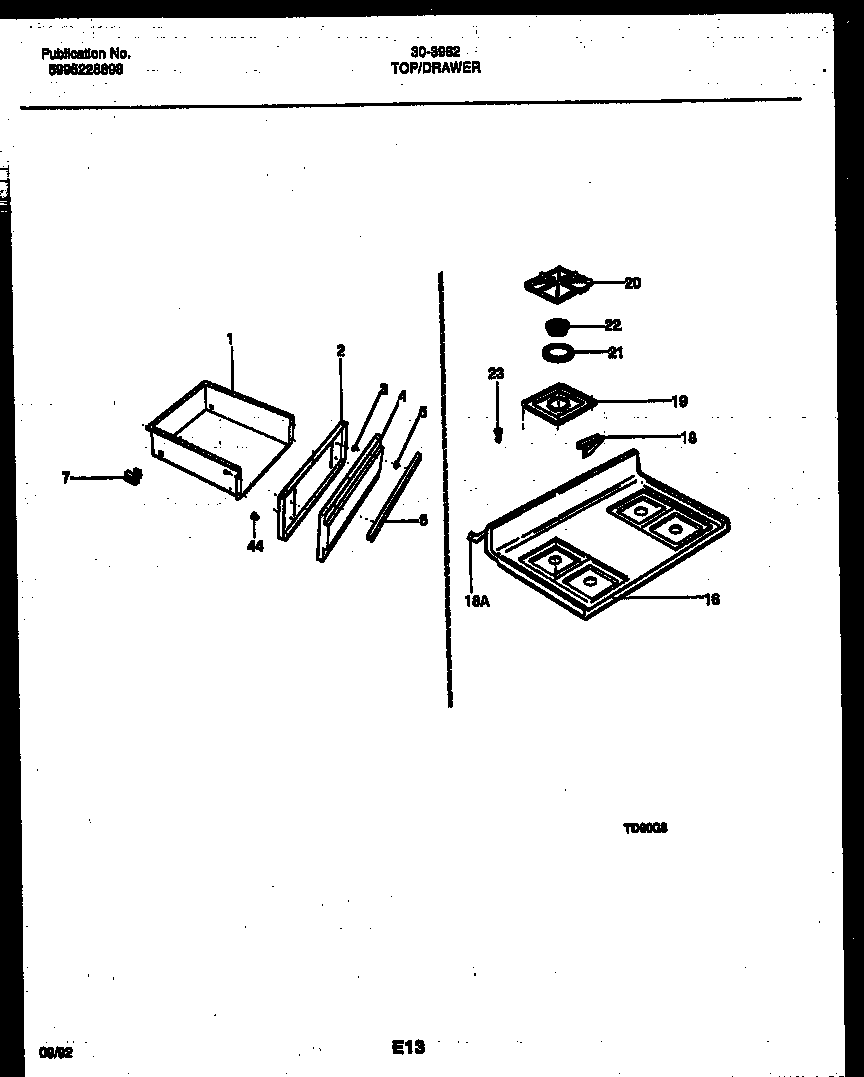

30-3982-23-02 06 – COOKTOP AND DRAWER PARTS

Products

Position	Product
*80098	WCI 5303281584
1	DRAWER-UTILITY
2	SHIELD-PNL
3	SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
4	PANEL – BROILER ALMD
4A	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
6	HANDLE-DRAWER, ALMOND
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16	WCI 5303285701
16B	GUSSET-MTG (LH) (NON-ILLUSTRATED)
16A	GUSSET-MTG (RH) (NON-ILLUSTRATED)
18	HINGE-MAIN TOP (RH)
18A	HINGE-MAIN TOP (LH)
19	WCI 316011400
20	WCI 5303269632
21	WCI 316035101
22	316010901 Frigidaire Burner Cap P1
23	316069301 Frigidaire Oven Burner Mounting Primary Screw
44	3131903 Frigidaire Door/Drawer Bumper
