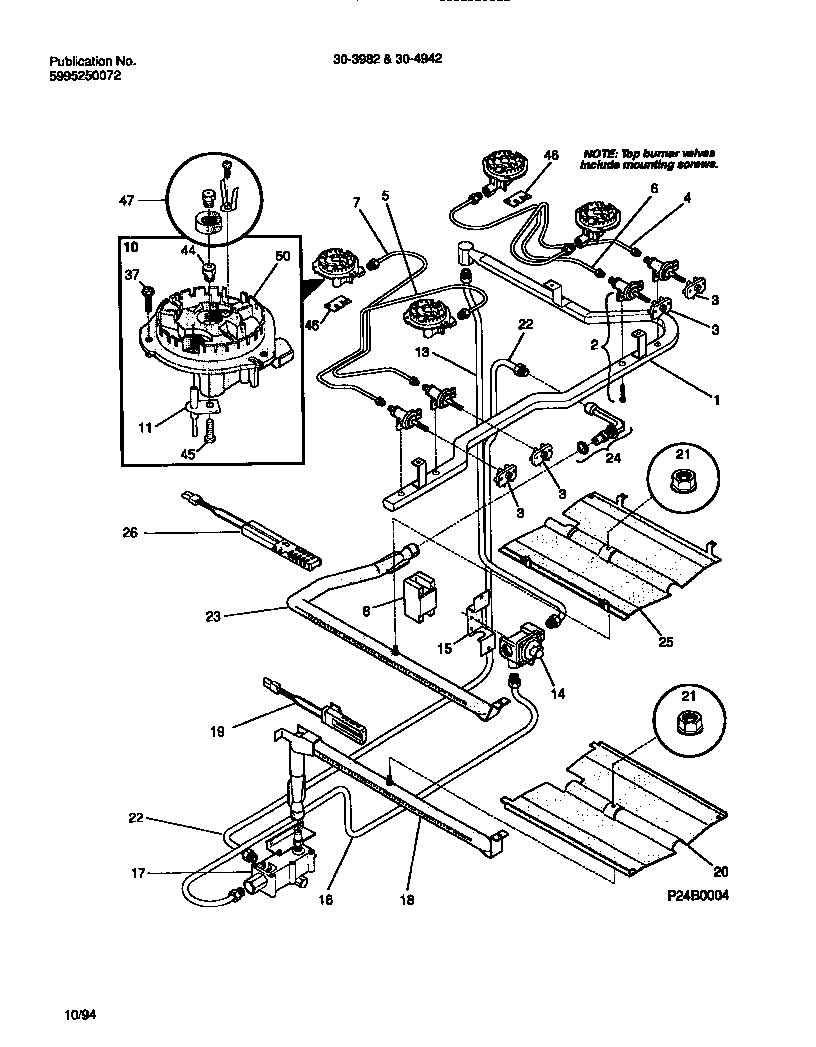

30-3982-23-03 03 – BURNER

30-3982-23-03 03 – BURNER

Written by

in

30-3982-23-03 03 – BURNER

Products

PositionProduct
1WCI 316066201
2WCI 316020400
3SWITCH-IGNITER, (4)
4WCI 316059600
5316059613 Frigidaire Oven Tube-LF
6WCI 316059602
7316059615 Frigidaire Oven Tube
85304505695 Frigidaire Oven Module
10BURNER ASSY-TOP, SEALED, (4), INCLUDES, 11, 37, 44, 45,
11316011200 Frigidaire Oven Top Burner Igniter
13WCI 316065005
145303935125 Frigidaire Pressure Regulator
15316091600 Frigidaire Oven Bracket
16WCI 316065003
175303208499 Frigidaire Safety Gas Valve
18WCI 3131290
195303935066 Frigidaire Oven Flat Igniter 17" Leads
20BAFFLE-OVN BURNER
215303013272 Frigidaire Oven Nut
22WCI 316065002
23WCI 08067935
24WCI 5303208640
25WCI 5303210379
265303935068 Frigidaire Flat Igniter
37316069301 Frigidaire Oven Burner Mounting Primary Screw
44ORIFICE-TOP BURNER, (4)
45WCI 316011100
46WCI 5303269491
47WCI 5303286386
50BURNER-TOP, (4), INCLUDES 37
