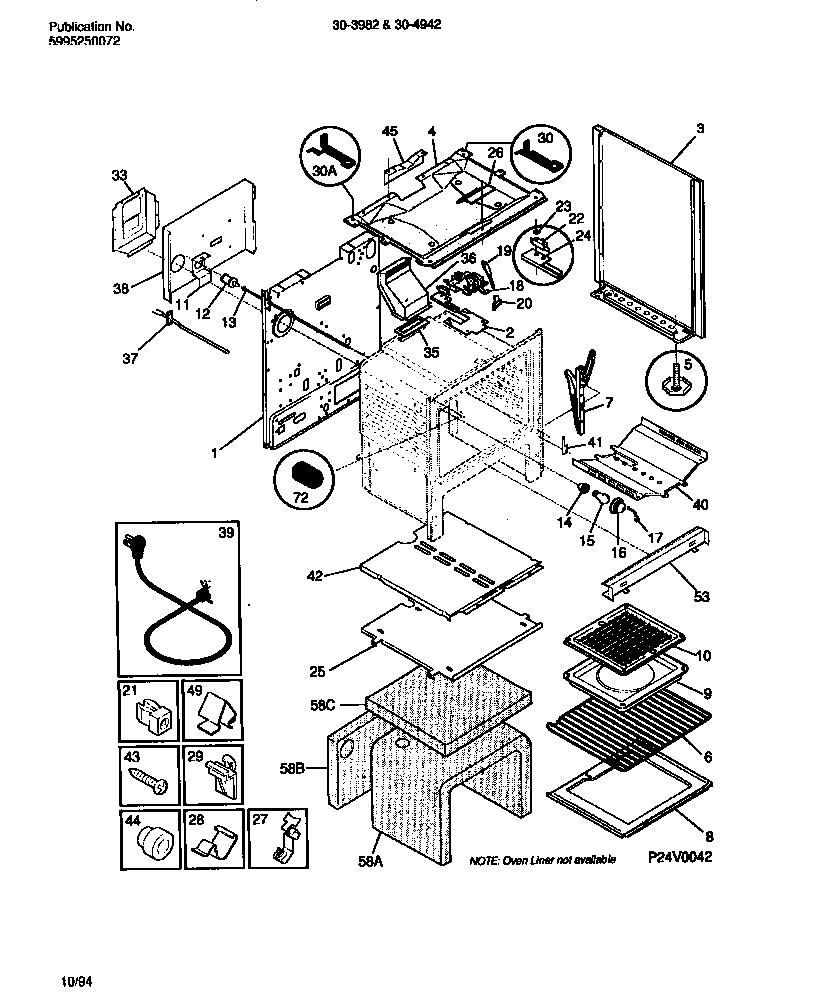

30-3982-23-03 04 – BODY

Products

PositionProduct
*23400FASTENER-EDGE MTG (NOT ILLUSTRATED)
*23401WCI 08067961
1WCI 3203082
2SHIELD-OVN TOP
3WCI 5303269543
3AWCI 5303269545
3BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3CWCI 08067992
4WCI 5303269487
5SCREW-LEVELING
5AANTI-TIP KIT (NOT ILLUSTRATED)
5BNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8A316064600 Frigidaire Oven Support
8BTTM-OVEN
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12SWITCH-OVEN LITE DOOR
13WCI 5303269501
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18WCI 5303015453
18SHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 08013188
20WCI 3203218
21SPACER-BODYSIDE, (8)
22ASTUD SPACER (2) (NON-ILLUSTRATED)
22SWITCH-LATCH
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
275303284616 Frigidaire Range Bulb Clip Thermostat
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
30BRACKET-HINGE, MAIN TOP RH
30ABRACKET-HINGE, MAIN TOP, LH
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 5303272844
38WCI 316035301
395304515659 Frigidaire Oven Power Cord
40WCI 3200836
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
443131903 Frigidaire Door/Drawer Bumper
45WCI 08068018
493205821 Frigidaire Clip
53A08067973 Frigidaire 0 Insulation
53SHIELD-FRONT
58BWCI 316054200
58CINSULATION, OVEN TOP
58AINSULATION, OVEN WRAPPER
72COVER-LIGHT/SWITCH ROD
