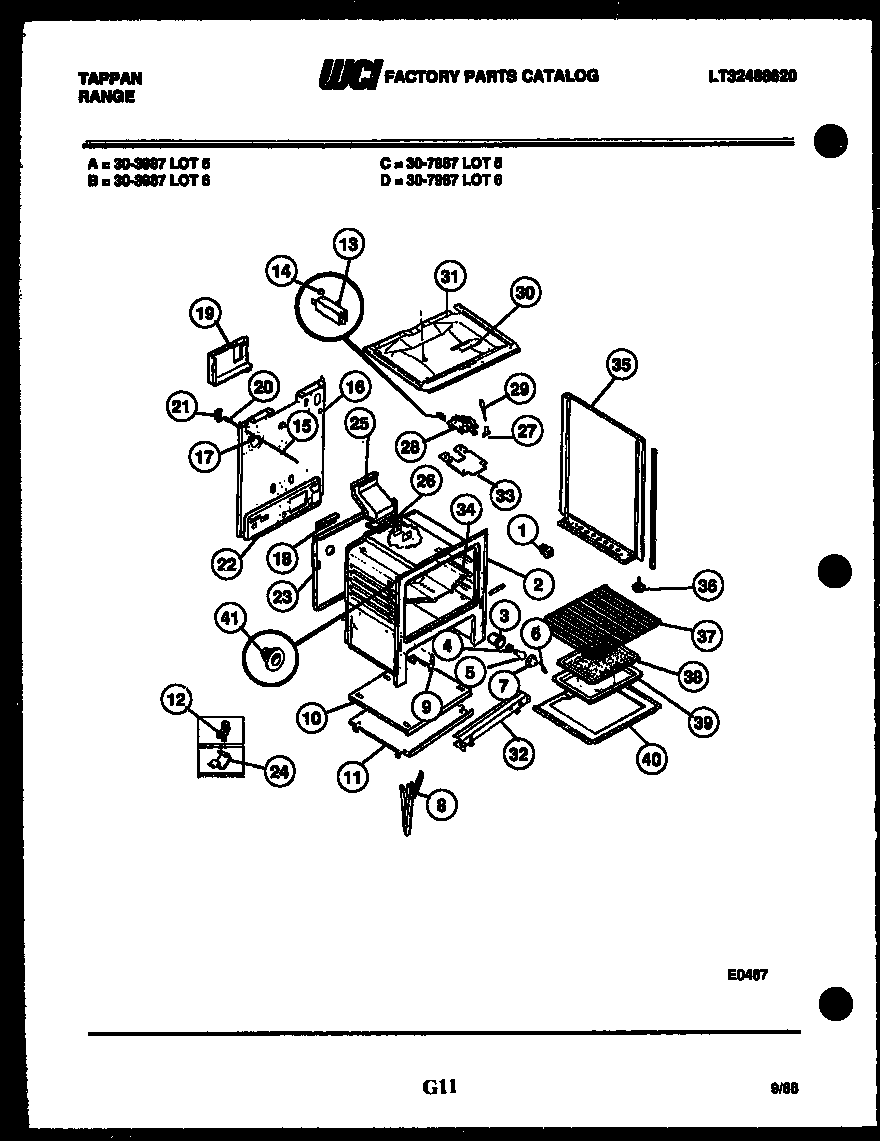

30-3987-00-06 06 – BODY PARTS

30-3987-00-06 06 – BODY PARTS

Written by

in

30-3987-00-06 06 – BODY PARTS

Products

PositionProduct
*13720FSTNR-POWER CORD (NON-ILLUSTRATED)
*13720INSUL OVEN BACK (NON-ILLUSTRATED)
*13721316282700 Frigidaire Oven Screw
*1372108067973 Frigidaire 0 Insulation
*13721WCI 655T434F01
*13721WCI 3131305
*13721INSULATION, OVEN TOP
*13721ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8WCI 316007002
9WCI 3131570
10WCI 3131312
11WCI 3131313
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15A5304534000 Frigidaire Cord
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131590
23WCI 3131316
24CLIP, WIRE
25WCI 3131296
26316542102 Frigidaire Flue Gasket
26ASHIELD-LATCH (NON-ILLUSTRATED)
26BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
27WCI 358T158S02
28WCI 368T027P01
29WCI 3051473
30WCI 3131101
31WCI 095T030F02-86
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3131315
35APNL. B/S (LH WHITE)
35PNL. B/S (RH WHITE)
36WCI 636M004P01
37316067902 Frigidaire Oven Rack
38WCI 3131356
39PAN, BROILER
40B3131903 Frigidaire Door/Drawer Bumper
40WCI 058T036F03-86
40A316064600 Frigidaire Oven Support
41BUTTON-REMOTE SW
