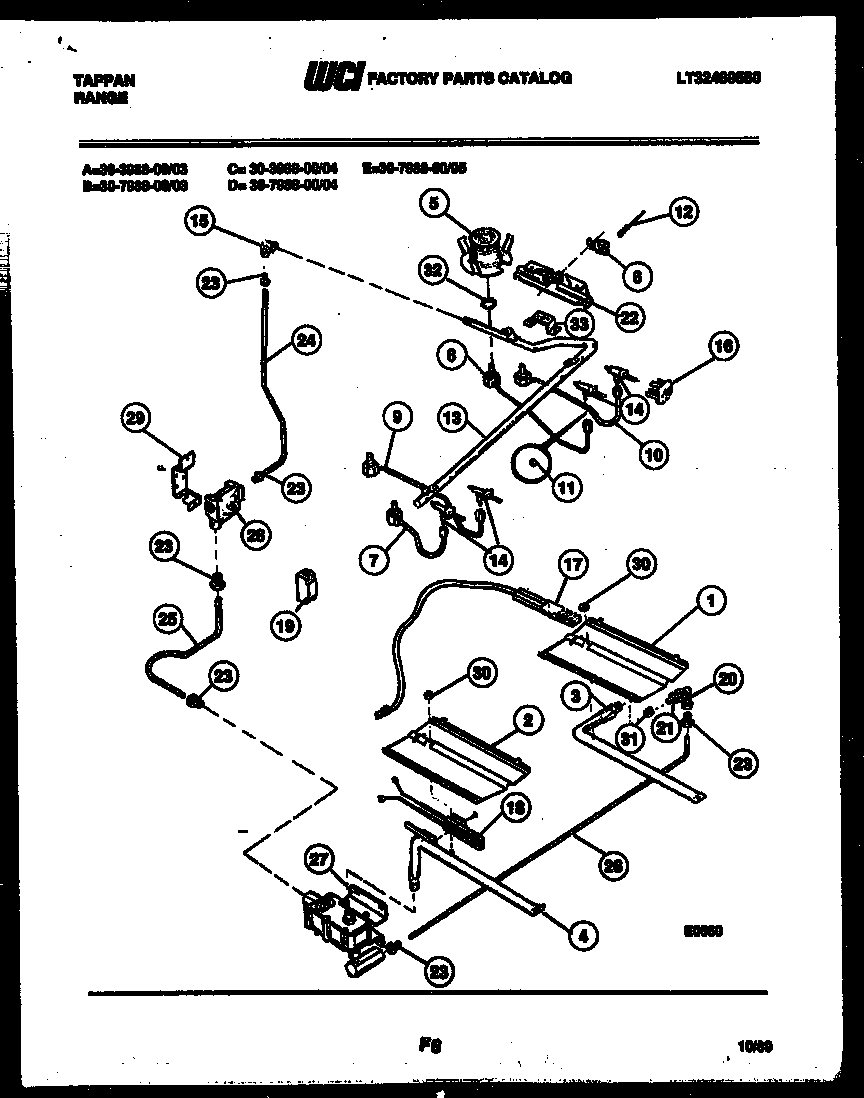

30-3988-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*33659	WCI 3051420
1	WCI 3131283
2	BAFFLE-OVN BURNER
3	WCI 079T028P01
4	WCI 3131290
5	WCI 079T032S02
6	WCI 3018617
7	WCI 079T033H01
8	WCI 079T033H02
9	WCI 079T033H03
10	WCI 079T033H04
11	WCI 247T074P01
12	IGNITER-TOP BURNER (4)
13	MANIFOLD, PIPE
14	WCI 3017846
15	ELBOW 1/2 NP TO 9/16-24
15A	NUT COMPRESSN (4)
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 455T008P02
21	NUT
22	WCI 1367355
23	FITTING-LOXIT (8)
24	TUBE-REGUL TEE
25	TUBE-VALVE TO REGUL
26	TUBE-VALVE TO MIXER ELBOW
27	5303208499 Frigidaire Safety Gas Valve
27A	5300809968 Frigidaire Dishwasher P-1 Washer
28	5303935125 Frigidaire Pressure Regulator
29	316091600 Frigidaire Oven Bracket
30	5303013272 Frigidaire Oven Nut
31	SPUD NO 50
32	NUT SPECIAL
