30-3989-00-02 02 – BACKGUARD

30-3989-00-02 02 – BACKGUARD

Written by

in

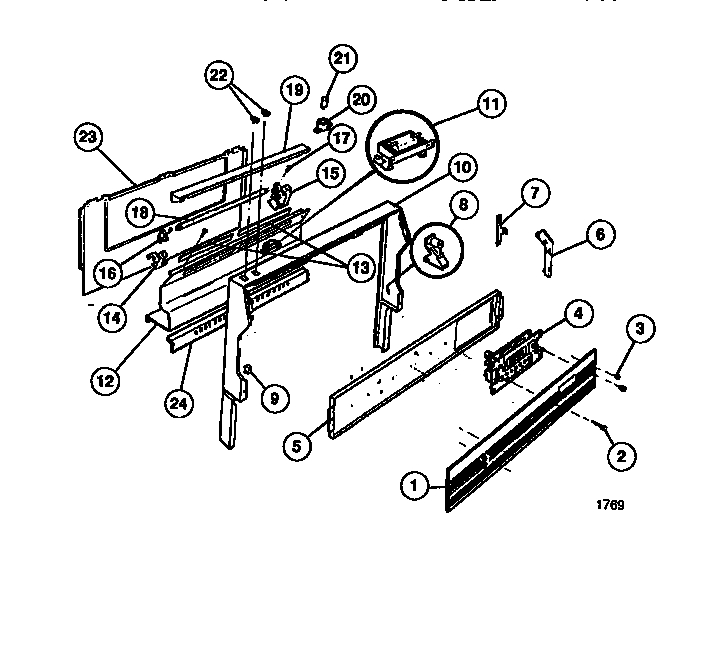

30-3989-00-02 02 – BACKGUARD

Products

PositionProduct
1WCI 3205501
2BUTTON ELECTRONIC (8)
3KNOB ELECT OVEN CONTROL (1)
4WCI 3204643
5WCI 5303203636
6WCI 3204746
6AWCI 3204747
7ATRIM-GLASS RETAINER,RH
7TRIM-GLASS RETAINER,LH
8SUPPORT-BACKGUARD,(2)
9ACAP-RH
9CAP-LH
10WCI 3204843
11WCI 5303051115
12WCI 3206268
12WCI 5303211800
13GLASS-WORK LITE (2)
14BRKT-FLUOR LT MTG LH
15BRKT-FLUOR LT MTG RH
16RECEPTACLE-FLU LT RH
17RECEPTACLE-FLU LT LH
18BULB-FLUOR
19SHIELD – FLUOR. LT
20RECEPTACLE, STARTER
21STARTER-LAMP
22WCI 5303203080
23SHIELD-BACKGUARD,REAR WALL
24WCI 3131241
