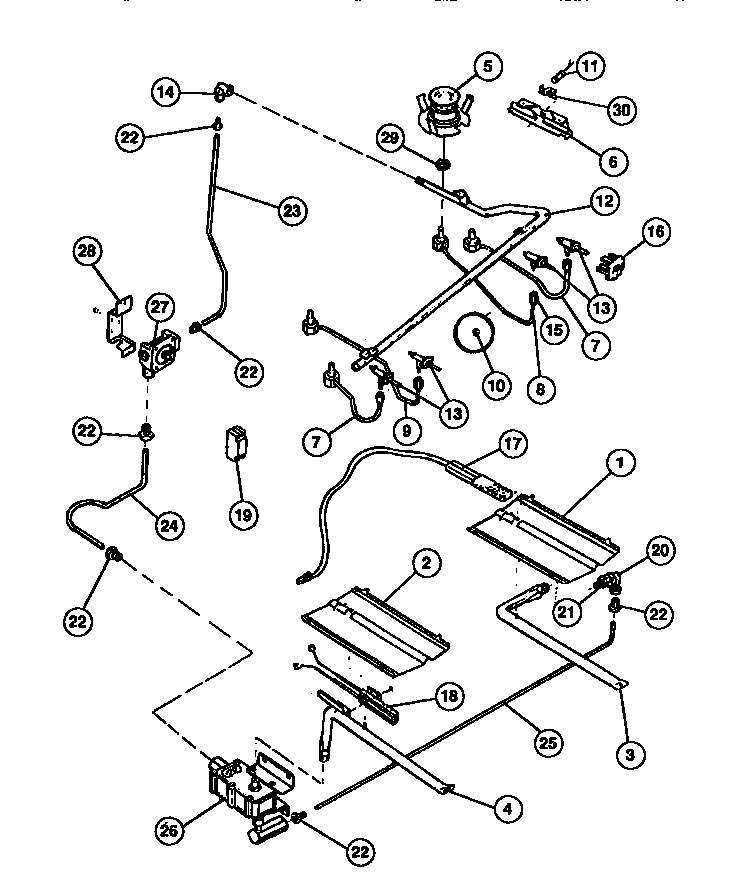

30-3989-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*31805WCI 3051420
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
5BURNER TOP (4)
6WCI 3206267
7BURNER TUBE-RF & LF
8WCI 5303011569
9WCI 5303011570
10FERRULE (4)
11IGNITER-TOP BURNER (4)
12WCI 3018861
13VALVE 3 POS (4)
14ELBOW 1/2 NP TO 9/16-24
15NUT COMPRESSN (4)
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20WCI 5303208640
20WCI 08067979
21NUT
22FITTING-LOXIT (8)
23ATUBE-ALUM 3/8 REG/MANIFOLD PIPE
23TUBE-REGUL TEE
24TUBE-VALVE TO REGUL
25TUBE-VALVE TO MIXER ELBOW
265303208499 Frigidaire Safety Gas Valve
275303935125 Frigidaire Pressure Regulator
28316091600 Frigidaire Oven Bracket
29NUT, SPECIAL
30WCI 3018617
