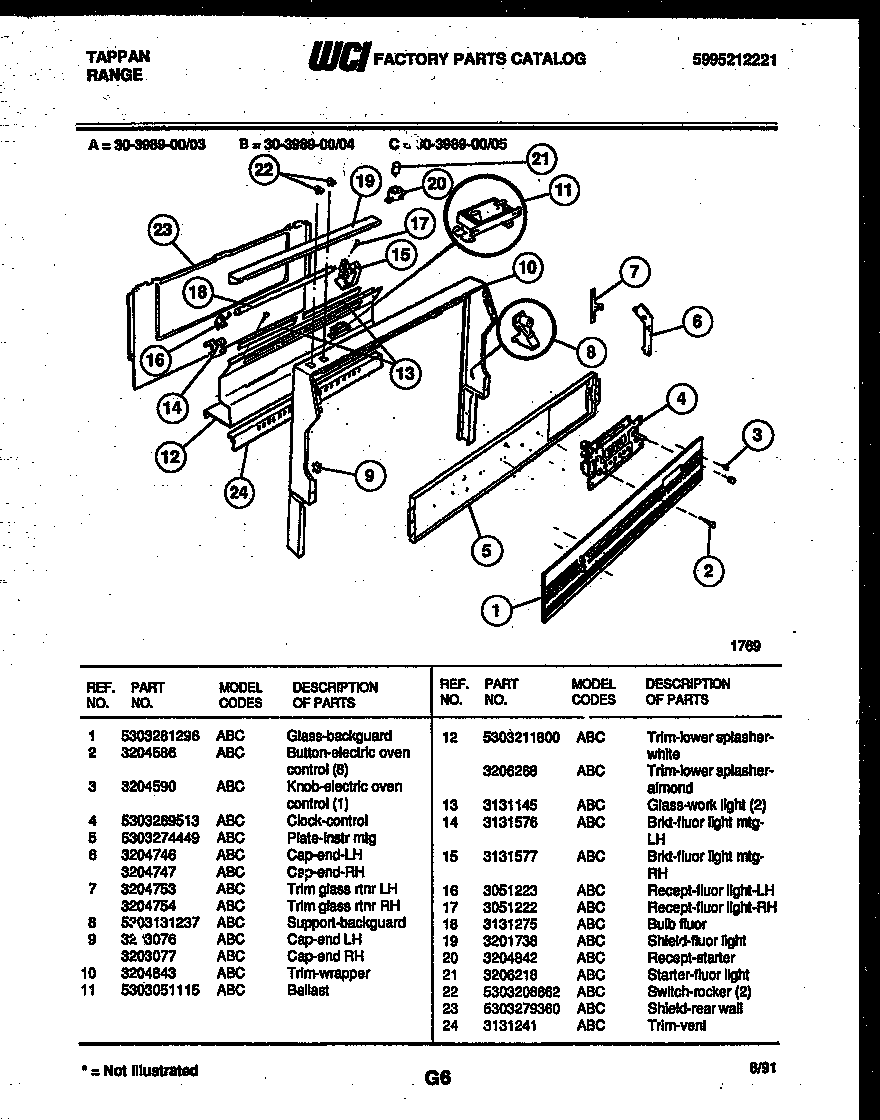

30-3989-00-04 02 – BACKGUARD

30-3989-00-04 02 – BACKGUARD

Written by

in

30-3989-00-04 02 – BACKGUARD

Products

PositionProduct
1WCI 5303281296
2BUTTON ELECTRONIC (8)
3KNOB ELECT OVEN CONTROL (1)
4ELECTRONIC CONTROL
5PLATE-INSTRUMENT
6WCI 3204746
6AWCI 3204747
7ATRIM-GLASS RETAINER,RH
7TRIM-GLASS RETAINER,LH
8SUPPORT-BACKGUARD,(2)
9CAP-LH
9ACAP-RH
10WCI 3204843
11WCI 5303051115
12WCI 5303211800
13GLASS-WORK LITE (2)
14BRKT-FLUOR LT MTG LH
15BRKT-FLUOR LT MTG RH
16RECEPTACLE-FLU LT RH
17RECEPTACLE-FLU LT LH
18BULB-FLUOR
19SHIELD – FLUOR. LT
20RECEPTACLE, STARTER
21STARTER-LAMP
225308015487 Frigidaire Switch-Oven Light
23WCI 5303279360
24WCI 3131241
