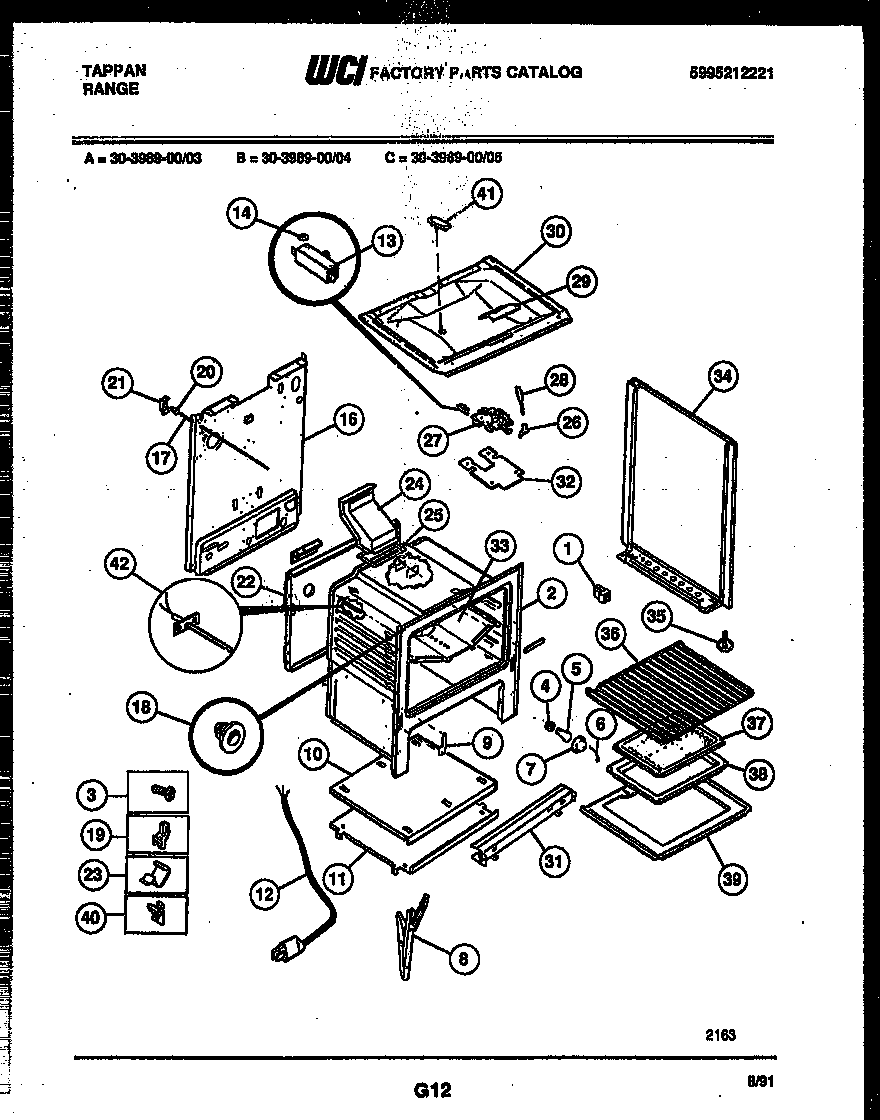

30-3989-00-04 07 – BODY PARTS

Products

PositionProduct
*57021WCI 08068018
*57021SHIELD-LATCH
*57021WCI 19100200015
*57021WCI 08013188
1SPACER-BODYSIDE, (8)
3316282700 Frigidaire Oven Screw
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10SHIELD-HEAT UPPER
11WCI 3131313
11AWCI 08067992
125304515659 Frigidaire Oven Power Cord
13SWITCH-LATCH
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
193203010 Frigidaire Clip
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-LATCH (NON-ILLUSTRATED)
33ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
33WCI 3200836
34PNL-B/S-LH-WHITE
34APNL-B/S-RH-WHITE
34AWCI 5303269543
34WCI 5303269545
35SCREW-LEVELING
35AFASTNR-LEVEL LEG (4)
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BWCI 08067961
39CINSULATION OVEN BACK (NON-ILLUSTRATED)
39A316064600 Frigidaire Oven Support
39FINSULATION, OVEN TOP
39EINSULATION, OVEN WRAPPER
39D08067973 Frigidaire 0 Insulation
39BTTM-OVEN
40ASHIELD-OVN TOP
403051162 Frigidaire Oven Range Front Broiler Drawer Glide
40BWCI 5303269502
41AANTI-TIP KIT (NOT ILLUSTRATED)
41WCI 3015371
425304497424 Frigidaire Oven Temperature Sensor Probe Kit
