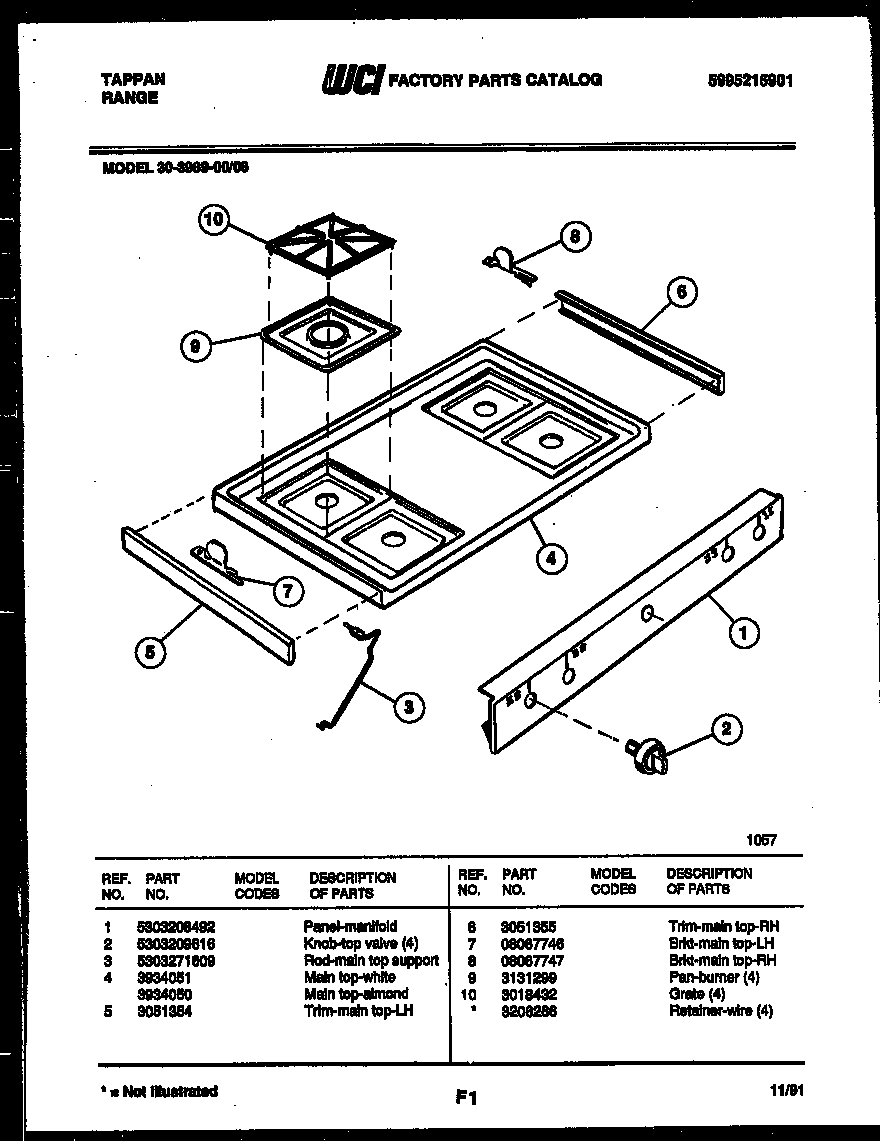

30-3989-00-06 03 – COOKTOP PARTS

30-3989-00-06 03 – COOKTOP PARTS

Written by

in

30-3989-00-06 03 – COOKTOP PARTS

Products

Position	Product
*63038	RETAINER WIRE
1	WCI 5303208492
2	KNOB-TOP VALVE, (4)
3	ROD-MAIN SUPPORT (2)
4	WCI 3934051
5	WCI 3051354
6	WCI 3051355
7	BRACKET-HINGE,MAIN TOP LH
8	BRACKET-HINGE,MAIN TOP RH
9	WCI 3131299
10	GRATE (4)
